Sold out
DS-KM8301
Model: DS-KM8301 – Hikvision Video Intercom
Details: Video Intercom Master Station
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-KM8301 Overview

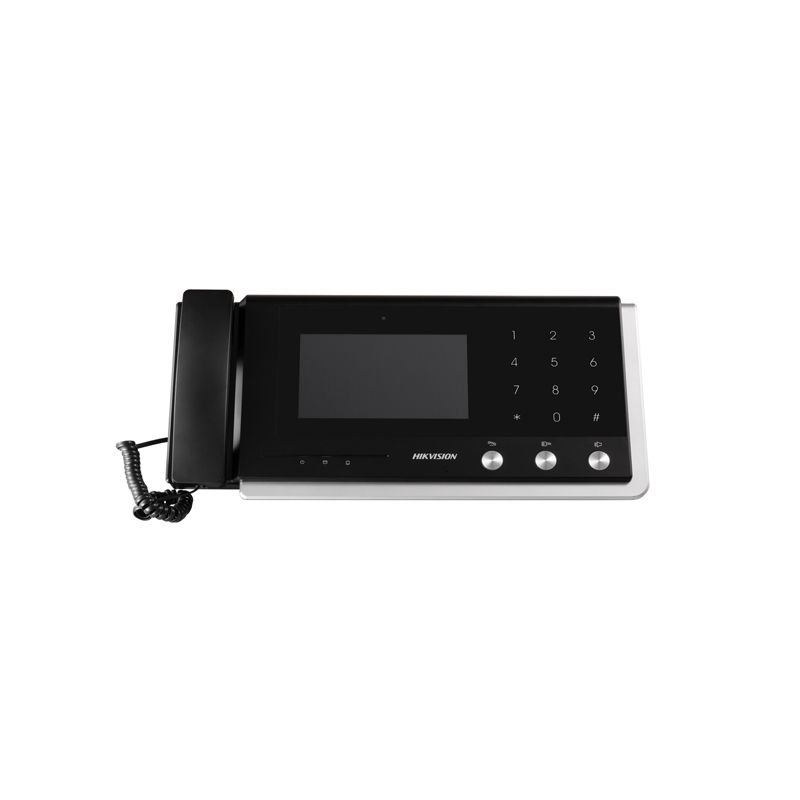

Quick Specs Figure 1 shows the appearance of DS-KM8301.
Table 1 shows the Quick Specs.
| Operation System | Embedded Linux Operation System |
| Processor | High-Performance Embedded SOC Processor |
| Display Screen | 7-Inch Colorful TFT LCD |
| Display Resolution | 1024 × 600 |
| Operation Method | Capacitive Touch Screen, Touch Key, Physical Button |
| Operation interface | Flattened UI Operation Interface |
| Camera | CMOS 0.3 MP |
| Video Compression Standard | H.264 |
| Resolution | 1280 x 720, 704 x 576 |
| Video frame rate | 25 fps, 12.5 fps |
| Audio Input | Built-in Omnidirectional Microphone + External Handset |
| Audio Output | Built-in Loudspeaker + External Handset |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Network Protocol | TCP/IP, RTSP |
| Ethernet | 10/100/1000 Mbps Self-Adaptive Ethernet |
| I/O Output | 2 On-Off Output, 2 Relay Output |
| I/O Input | 4 On-Off Input |
| RS-485 | 2 RS-485 Half-Duplex Port |
| Network Interface | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| Power Supply | 12 VDC |
| Power Consumption | ≤10 W |
| Material | Plastic |
| Certification | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
| Working Humidity | 10% to 90% |
| Working Temperature | -10° C to + 55° C (14° F to 131° F) |
| Dimensions(L × W × H) | 436 mm × 215 mm × 67 mm (17.2″ ×8.5″ × 2.6″) |
