E0V261101
Model: Huawei eSpace IPC2611-F 1.3MP Camera E0V261101
Details: Huawei E0V261101 eSpace IPC2611-F 1.3MP Day/Night Low-light Box Network Camera(60fps,SFP)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
E0V261101 Overview

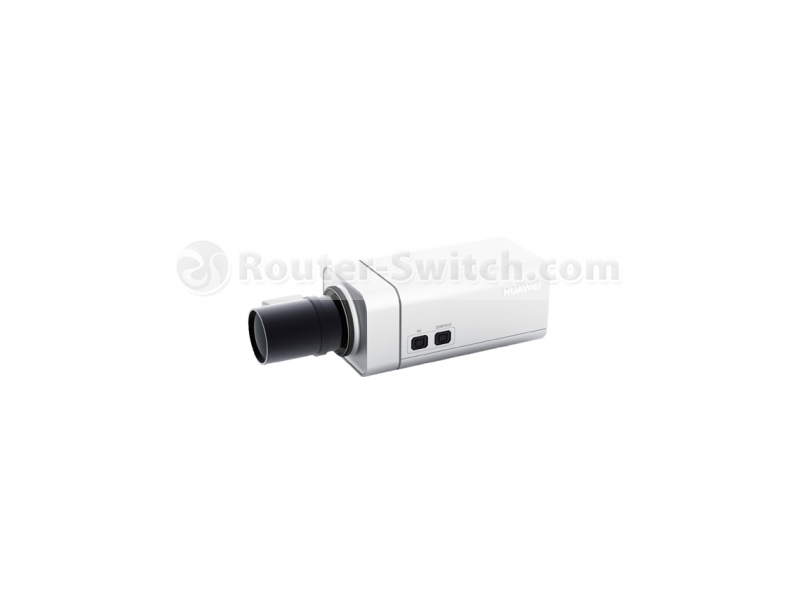

Quick Specs Figure 1 shows the appearance of E0V261101.
Table 1 shows the Quick Specs.
| Image sensor | 1/3” Progressive Scan CMOS |
| Effective pixels | 1280(H)×720(V) |
| Minimum Illumination | Multicolor: 0.04Lux /(F1.4，AGC ON ) B/W: 0.02Lux /(F1.4，AGC ON ) |
| Day/Night mode | Optical filter switched m color mode to B/W mode |
| Electronic shutter speed | 1/60s ～ 1/67,500s |
| Gain control | Support |
| White balance | Support |
| Backlight compensation | Support |
| Focal length | Lens Reprovision (CS interface with the CS / C adapter) |
| Aperture | Auto Iris，DC drive |
| Video encoding format | H.264/MJPEG H.264 supporting up to High profile |
| Video resolution and frame rate | 720P 60 FPS D1 30 FPS CIF 30 FPS |
| Video bit rate | 720p: 512 kbit/s to 8 Mbit/s D1: 300 kbit/s to 4 Mbit/s CIF: 100 kbit/s to 1 Mbit/s |
| Multiple-Stream | Dual streams |
| Audio encoding format | G.711a ,G.711u |
| Audio bit rate | 64kbps |
| Communication interface | One RJ45 10/100 Base-T adaptive Ethernet interface and one RS-485 interface |
| Alarm interface | 2-channel alarm input/2-channel alarm Output |
| Audio interface | 1-channel audio input/1-channel audio Output |
| BNC interface | BNC connector |
| Motion detection | Four motion detection areas and Five accuracy levels |
| Video quality and frame rate adjustment | Support |
| Auto-adjust stream (AAS) | Support |
| Image rotation and mirroring | Support |
| Network protocol | IPv4,HTTP,RTP,RTCP,SIP,TCP,UDP,ARP,ICMP,DHCP,Network Protocol, ONVIF |
| Maximum number of concurrent users access | 4 |
| Local storage | SD/SDHC（32G） |
| Security mode | Three levels of users: administrator, operator, and common userMedia Security，Authorized user and passport |
| Other functions | one-key reset，Dual streams，auto discovery，DHCP |
| SDK development | SDK（linux/windows C++ SDK） |
| Power supply | DC12V±10%, DC24V±10%, AC24V±10%, POE 802.3at:-50V~-57V; Self-adaptive power supply automatically regulates power input for stability. |
| Power consumption | ≤9.6W |
| Operating temperature & humidity | -10℃~50℃; < 90%(without condensation) |
| Net weight | 0.995kg |
| Dimensions (mm) | 157.7×79.7×79.4 |
