-5%
E0V561102
Model: Huawei eSpace IPC5611-WD-F 2MP E0V561102 Camera
Details: Huawei eSpace IPC5611-WD-F 2MP Day/Night WDR Intelligent Box Network Camera(30fps,SFP)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
E0V561102 Overview

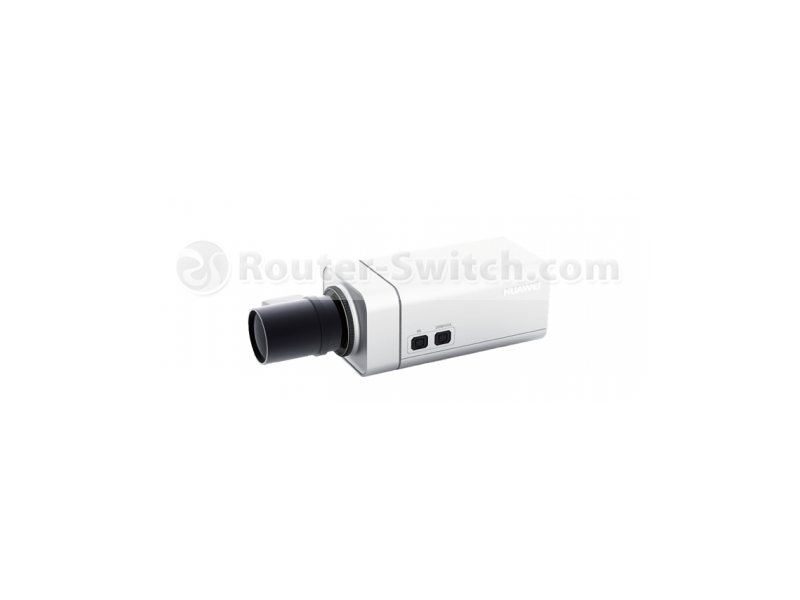

Quick Specs Figure 1 shows the appearance of E0V561102.
Table 1 shows the Quick Specs.
| Image sensor | 1/3″ 2.0-megapixel Progressive Scan CMOS |
| Effective pixels | 1920(H)×1080(V) |
| Minimum Illumination | Multicolor: 0.05Lux (F1.4,AGC ON) B/W: 0.01Lux (F1.4,AGC ON) |
| Day/Night mode | IR cut filter with auto switch |
| Electronic shutter speed | 1/30,000s to 1/30s |
| Gain control | Auto |
| White balance | Auto/Manual |
| WDR | Supported |
| Lens interface | Accepts C or CS mount lens (CS-mount lens with a C-to-CS-mount adapter) |
| Lens control | DC drive auto iris |
| Video encoding format | H.264 HP@L4, MJPEG |
| Video resolution and frame rate | 1080p@30fps, 720p@30fps, D1@30fps, CIF@30fps |
| Video bit rate | 1080P: 1Mbps to 8Mbps, 720P:512Kbps to 8Mbps, D1: 300Kbps to 4Mbps, CIF: 100Kbps to 1Mbps |
| Multiple-Stream | Dual streams |
| Audio encoding format | G.711a ,G.711u |
| Audio bit rate | 64kbps |
| Communication interface | one RJ45 10/100 Base-T Ethernet interface and one RS-485 interface |
| SFP | Supported |
| Alarm interface | 2-channel alarm input/2-channel alarm Output, PHOENIX interface |
| Audio interface | 1-channel audio input/1-channel audio Output, 3.5 mm audio interface |
| Analog video output | 1-channel RCA interface |
| Intelligent analysis | Tripwire detection and moving objects counting |
| Motion detection | Supported |
| Privacy masks | Supported |
| Video quality and frame rate adjustment | Supported manual adjustment |
| Image rotation and mirroring | Supported |
| Network protocol | IPv4,HTTP,RTP,RTCP,SIP,TCP,UDP,ARP,ICMP,DHCP,ONVIF 2.1 |
| Maximum access users | 4 |
| Local storage | SD or SDHC card (maximum 32 GB, no built-in SD card) |
| Security mode | User name and password authentication |
| Alarm linkage | Supported |
| Software Development Kit (SDK) | Supported |
| Power supply | DC (no cathode or anode): 21.6 V to 26.4 V and 10.8 V to 13.2 V , AC: 21.6 V to 26.4 V , PoE (802.3at): –50 V to –57 V ; Self-adaptive power supply automatically regulates power input for stability |
| Power consumption | ≤18W |
| Operating temperature & humidity | -10℃~55℃ , < 90%(Noncondensing) |
| Net weight | 0.995kg |
| Dimensions (mm) | 157.7×79.7×79.4 |
