EPC230U-PTZ
Model: EPC230U-PTZ – Dahua 2MP PTZ
Details: Dahua 2MP 30x Explosion-proof Network Positioning System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
EPC230U-PTZ Overview

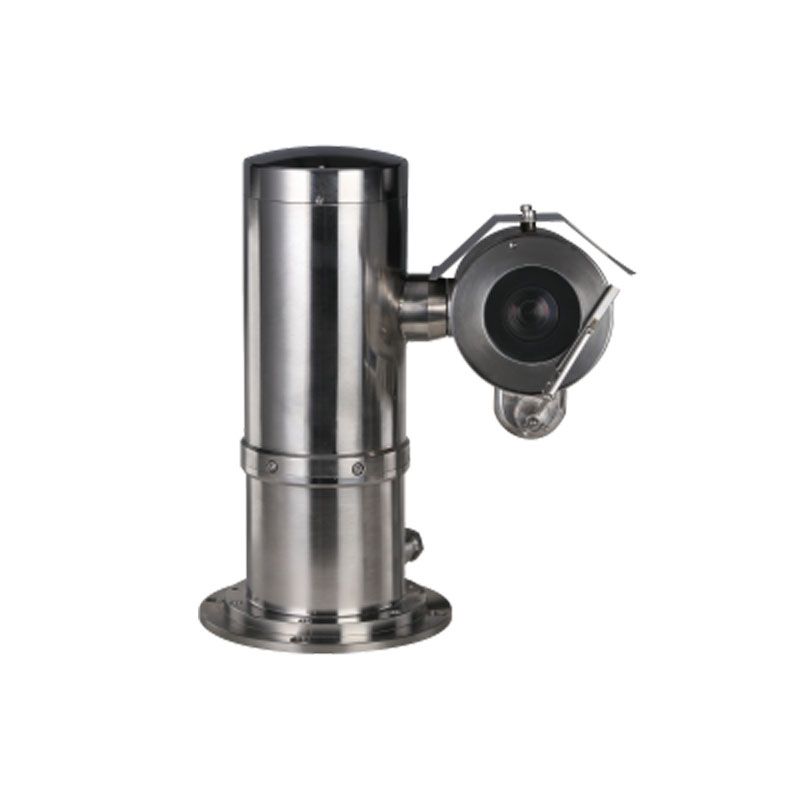

Quick Specs Figure 1 shows the appearance of EPC230U-PTZ.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | EPC230U-PTZ |
| Image Sensor | 1/2.8° 2 Megapixel CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Zoom | 30x optical zoom |
| Lens | 4.5 mm?C135 mm |
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.001Lux@F1.6 |
| Video Compression | H.265/H.264/MJPEG |
| Max Resolution | 1920 x 1080 |
| Frame Rate | Up to 60fps @ 1080P |
| Pan Range | 360° endless |
| Tilt Range | -90° to +90° |
| Preset Speed | Pan: 240°/s; Tilt: 160°/s |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, and more |
| Ingress Protection | IP68 |
| Explosion-proof | Ex d IIC T6 Gb, Ex tD A21 IP68 T80°C |
| Material | Stainless steel 316L |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Power Supply | 24 V AC |
| Power Consumption | Max. 50W |
| Dimensions | 460 mm x 230 mm x 300 mm |
| Mounting Options | Wall; Pole; Corner |
