-5%
ESS3124S-JR
Model: ESS3124S-JR – Dahua Storages
Details: 24 HDDs SAS Storage Cabinet
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ESS3124S-JR Overview

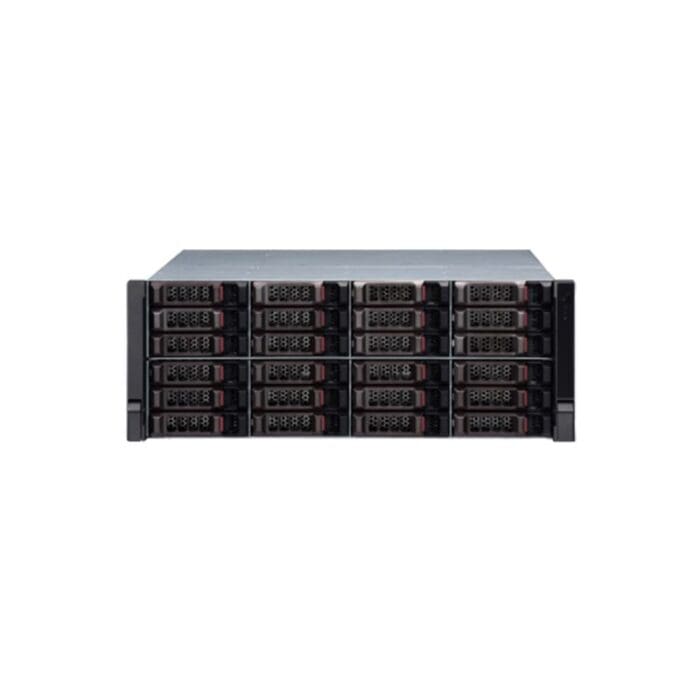

Quick Specs Figure 1 shows the appearance of ESS3124S-JR.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | ESS3124S-JR |
| Storage Type | SAS |
| Storage Capacity | 24 HDDs |
| Form Factor | 4U Rackmount |
| Interface Type | SAS 12 Gb/s |
| Supported HDDs | 3.5″ SAS and SATA HDDs |
| Maximum Single Drive Capacity | 14 TB |
| RAID Levels | RAID 0, 1, 5, 6, 10, 50, 60 |
| Operating System | Linux based OS |
| Redundant Power Supply | Yes, Dual 550W |
| Networking Ports | 2x Gigabit Ethernet |
| Expansion Options | Up to 12 expansion units |
| Cooling Fans | 4x Hot-swappable fans |
| Hot-Swap Drive Bays | Yes, 24 Bays |
| Management Interface | Web-based interface, CLI |
| Supported Protocols | iSCSI, NFS, SMB/CIFS |
| Operating Temperature | 5��C to 40��C (41��F to 104��F) |
| Warranty | 3 Years |
| Dimensions (D x W x H) | 650mm x 438mm x 175mm |
| Power Consumption | 550W (Max) |
