HAC-B2A21
Model: HAC-B2A21 – Dahua 2MP CVI
Details: Dahua 2MP HDCVI IR Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HAC-B2A21 Overview

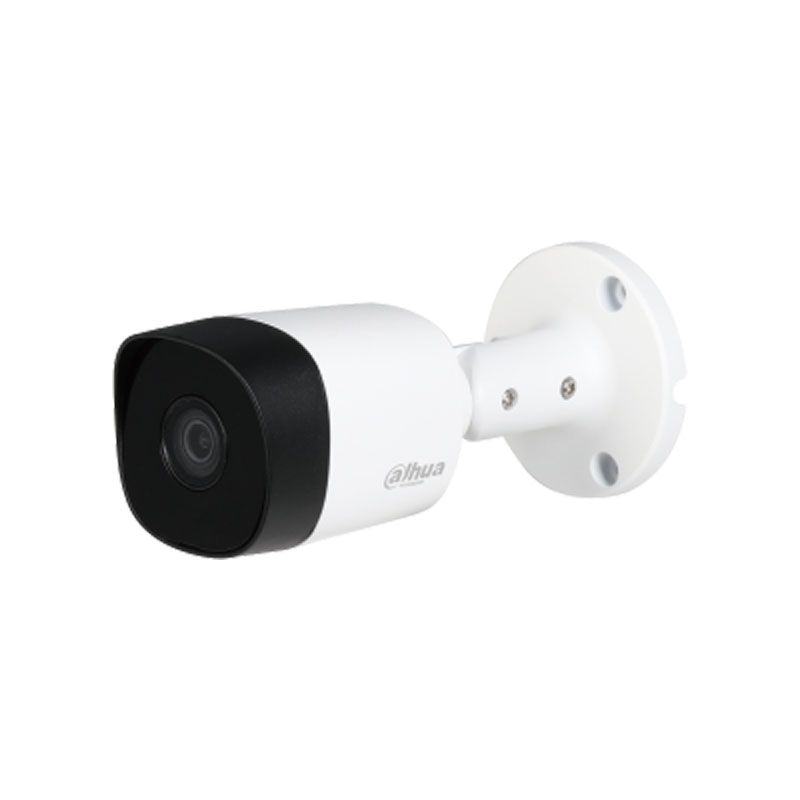

Quick Specs Figure 1 shows the appearance of HAC-B2A21.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model Name | HAC-B2A21 |
| Camera Type | Bullet |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1920(H) ° 1080(V), 2MP |
| Electronic Shutter Speed | 1/30s ~ 1/100,000s |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| IR Distance | Max 20m (65.6 feet) |
| IR On/Off Control | Auto / Manual |
| Lens Type | Fixed |
| Focal Length | 2.8mm, 3.6mm, 6mm (Optional) |
| Max Aperture | F1.85 |
| Angle of View | 98° (2.8mm), 76° (3.6mm), 50° (6mm) |
| Day/Night | Auto (ICR) / Manual |
| Video Frame Rate | 1080P @ 25/30 fps |
| Video Output | 1-channel BNC HDCVI high-definition video output / CVBS video output (Can switch) |
| Audio Interface | N/A |
| Power Supply | 12V DC ° 30% |
| Power Consumption | Max. 3.4W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Humidity: <90% RH (non-condensing) |
| Ingress Protection | IP67 |
| Dimensions | 154.3mm ° 69.8mm ° 69.8mm |
