HAC-HDBW1801E
Model: HAC-HDBW1801E – Dahua 4K CVI
Details: 4K HDCVI IR Dome Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDBW1801E Overview

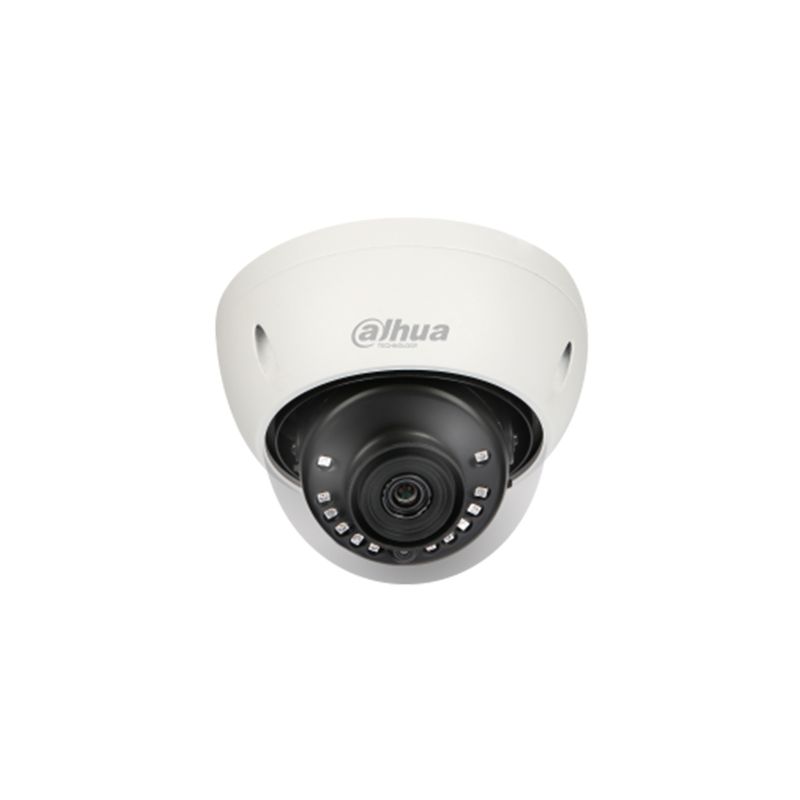

Quick Specs Figure 1 shows the appearance of HAC-HDBW1801E.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | HAC-HDBW1801E |
| HD Video Output | 1-channel BNC high definition video output |
| Resolution | 4K (3840 x 2160) |
| Image Sensor | 1/2.7″ CMOS |
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| Day/Night | Auto (ICR) / Manual |
| IR Distance | Max 30m (98ft) |
| Lens Type | Fixed lens / Fixed iris |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Angle of View | 102�� |
| Video Frame Rate | 4K@15fps; 1080P@30fps; 720P@30fps |
| Audio Interface | 1-channel Built-in Mic |
| OSD Menu | Multi-language |
| Power Supply | 12V DC ��25% |
| Power Consumption | Max 5.5W (12V DC, IR on) |
| Operating Temperature | -30��C ~ +60��C (-22��F ~ +140��F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions | ��122mm �� 88.9mm (4.8″ �� 3.5″) |
| Signal System | PAL/NTSC |
| Max. IR LEDs Length | 30 m (98 ft) |
