-5%
HAC-HDBW3802E-Z
Model: HAC-HDBW3802E-Z – Dahua 8MP CVI
Details: 8MP HDCVI WDR IR-Dome Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDBW3802E-Z Overview

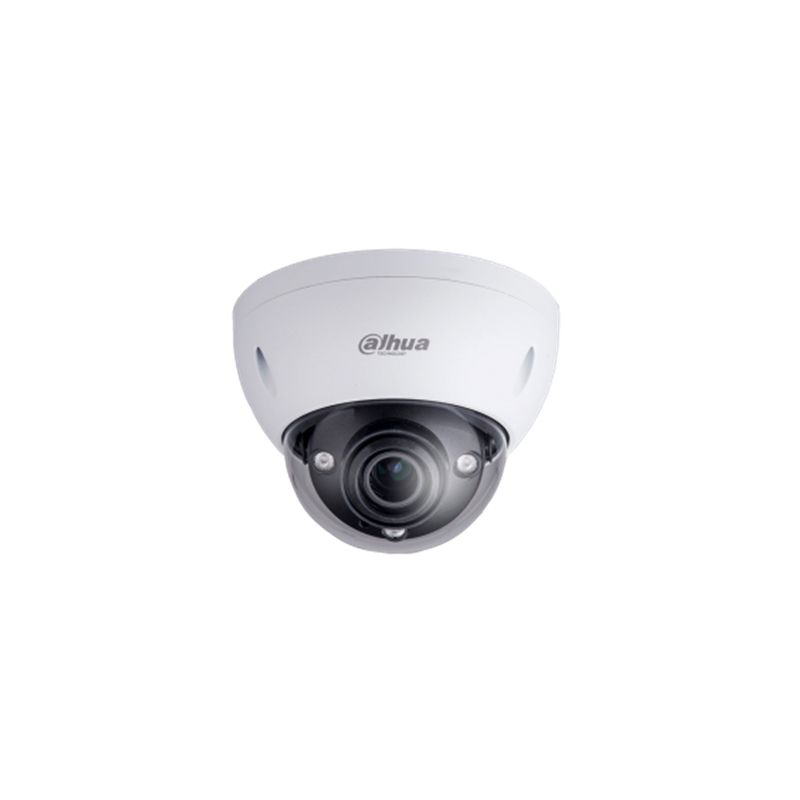

Quick Specs Figure 1 shows the appearance of HAC-HDBW3802E-Z.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.8″ CMOS |
| Effective Pixels | 3840(H)x2160(V), 8MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1s~1/100,00s |
| Minimum Illumination | 0.005Lux/F1.5(Color), 30IRE, 0Lux/F1.5(B/W) |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 50m (164feet) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 3 |
| Lens Type | Motorized lens / Auto iris |
| Mount Type | Board-in |
| Focal Length | 3.7-11mm |
| Max Aperture | F1.5 |
| Angle of View | H: 112°~46° |
| Focus Control | Auto / Manual |
| Close Focus Distance | 0.2m7.87″ |
| Wide | Tele |
| Detect | 25px/m (8px/ft) |
| Observe | 63px/m (19px/ft) |
| Recognize | 125px/m (38px/ft) |
| Identify | 250ppm (76px/ft) |
| Pan/Tilt/Rotation | Pan: 0°~ 355°Tilt: 0°~ 85°Rotation: 0°~ 355° |
| Resolution | 8MP (3840×2160) |
| Frame Rate | PAL:3840×2160@12.5fps,2560×1440@25fps;NTSC:3840×2160@15fps,2560×1440@30fps; |
| Video Output | 1-channel HDCVI 4K video output & 1-channel CVBS video output |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | 1 |
| Alarm I/O | 2/1 |
| Power Supply | 12V DC±25% |
| Power Output | DC 12V/Max 4W |
| Power Consumption | Max 12.4W |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH* Start up should be done at above -30°C (-22°F) |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & VandalResistance | IP67 & IK10 |
| Casing | Aluminium |
| Dimensions | Φ159.1mmx 117.9mm (Φ6.26″x 4.64″) |
