HAC-HDW1200EM-A
Model: HAC-HDW1200EM-A – Dahua 2MP CVI
Details: Dahua 2MP HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDW1200EM-A Overview

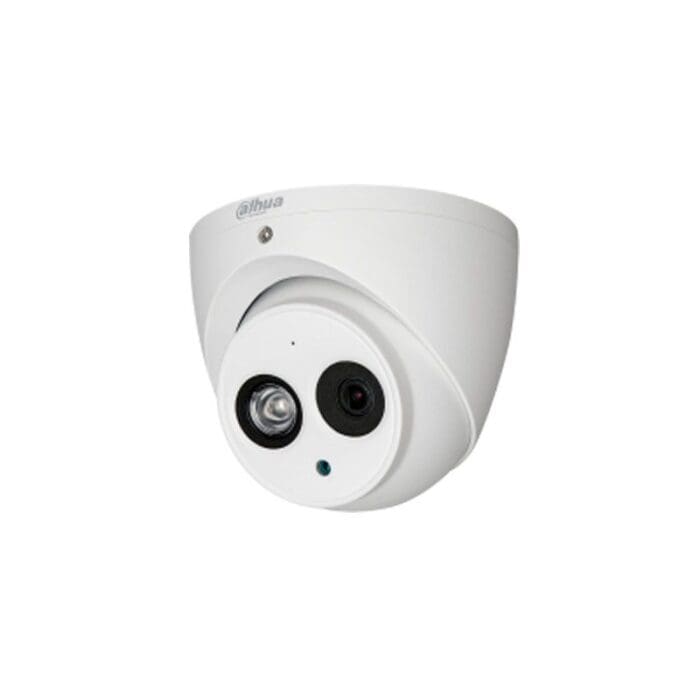

Quick Specs Figure 1 shows the appearance of HAC-HDW1200EM-A.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000sNTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 50m (164feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 1 |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F1.85 |
| Angle of View | H: 87.5° (103°, 54.7°) |
| Focus Control | N/A |
| Close Focus Distance | 500mm (900mm, 2000mm)19.69” (35.43″, 78.74”) |
| Detect | 25px/m(8px/ft) |
| Observe | 63px/m(19px/ft) |
| Recognize | 125px/m(38px/ft) |
| Identify | 250ppm(76px/ft) |
| Pan/Tilt/Rotation | Pan: 0° ~ 360°Tilt: 0° ~ 78°Rotation: 0° ~ 360° |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | Built-in Mic |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max 4.2W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH* Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimensions | Φ106mm×93.7mm (Φ4.17″×3.69″) |
| Net Weight | 0.44kg (0.97lb) |
| Gross Weight | 0.59kg (1.3lb) |
