HAC-HDW1200TL-A
Model: HAC-HDW1200TL-A – Dahua 2MP CVI
Details: Dahua 2MP HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDW1200TL-A Overview

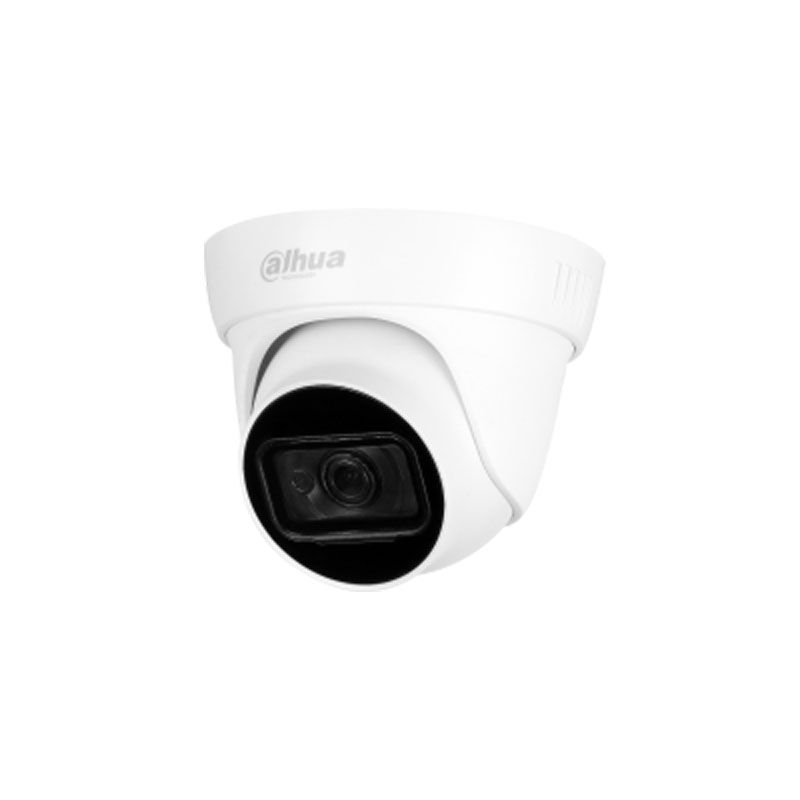

Quick Specs Figure 1 shows the appearance of HAC-HDW1200TL-A.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s–1/100000sNTSC: 1/30s–1/100000s |
| S/N Ratio | >65dB |
| Minimum Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on |
| Fill Light Working Distance | 30 m (98.4 ft) |
| IR On/Off Control | Auto; manual |
| IR LED Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.9 |
| Field of View | 2.8 mm: 119° x 101° x 54°(diagonal x horizontal x vertical)3.6 mm: 100° x 84° x 45°(diagonal x horizontal x vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 2.8 mm: 0.5 m (1.7 ft)3.6 mm: 0.8 m (2.6 ft) |
| DORI Distance | Lens |
| 2.8 mm | 38.6 m (126.6 ft) |
| 3.6 mm | 49.7 m (163.1 ft) |
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;AHD: 1080P@25/30fps; 720P@25/30fps;TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;CVBS: 960H |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Output | One channel built-in mic (-A) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 3.3W (12V DC, IR on) |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Protection Grade | IP67 |
| Casing | Mental upper dome+plastic lower dome+plastic cover |
| Camera Dimensions | φ97.0 mm × 85.8 mm ( φ3.82″ × 3.38″ ) |
| Net Weight | 0.22 Kg (0.49 lb) |
| Gross Weight | 0.28 Kg (0.62 lb) |
