HAC-HDW1220G-M

$0.00

Model: HAC-HDW1220G-M – Dahua Mobile
Details: Dahua 2MP Mobile HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

SKU: HAC-HDW1220G-M Categories: , ,
Description

HAC-HDW1220G-M Overview

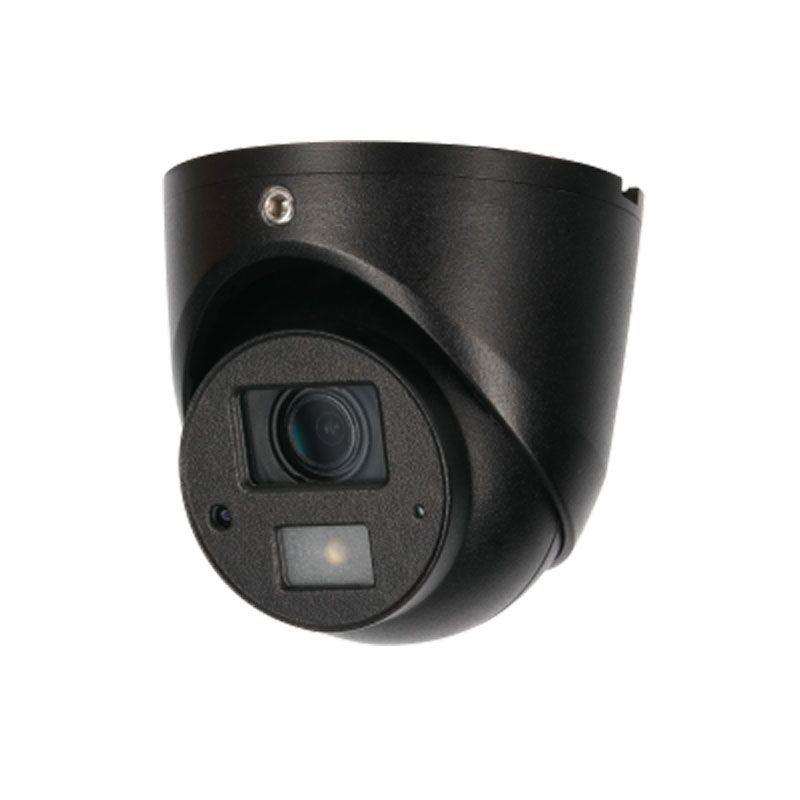

Quick Specs Figure 1 shows the appearance of HAC-HDW1220G-M.

Table 1 shows the Quick Specs.

Image Sensor 1/2.9″ CMOS
Effective Pixels 1920(H)Ă—1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm/3.6mm/6mm
Max Aperture F1.9/F2.0/F2.0
Angle of View 96°, 82.8°, 51°
Focus Control N/A
Close Focus Distance 600/800/1900mm23.6″/31.5″/74.8″
Pan/Tilt/Rotation Pan: 0° ~ 360°Tilt: 0° ~ 80°Rotation: 0° ~ 360°
Resolution 1080P (1920Ă—1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC HDCVI high definition video output (Aviation connector)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)EN50155 (EN50121-3-2, IEC61373)
Audio Interface Built-in Mic
Aviation Connector Interface 1-power2-video ground3-power ground4-video
Power Supply 12V DC ±25%
Power Consumption Max 2.9W (12V DC, IR on)
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance IP67
Casing Aluminium
Dimensions Φ62mmĂ—62mm (Φ2.44″Ă—2.44″)
Net Weight 0.16kg (0.35lb)
Gross Weight 0.23kg (0.51lb)
Detect 25px/m(8px/ft)
Observe 63px/m(19px/ft)
Recognize 125px/m(38px/ft)
Identify 250ppm(76px/ft)
