HAC-HDW1400EM-A
Model: HAC-HDW1400EM-A – Dahua 4MP CVI
Details: Dahua 4MP HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
HAC-HDW1400EM-A Overview

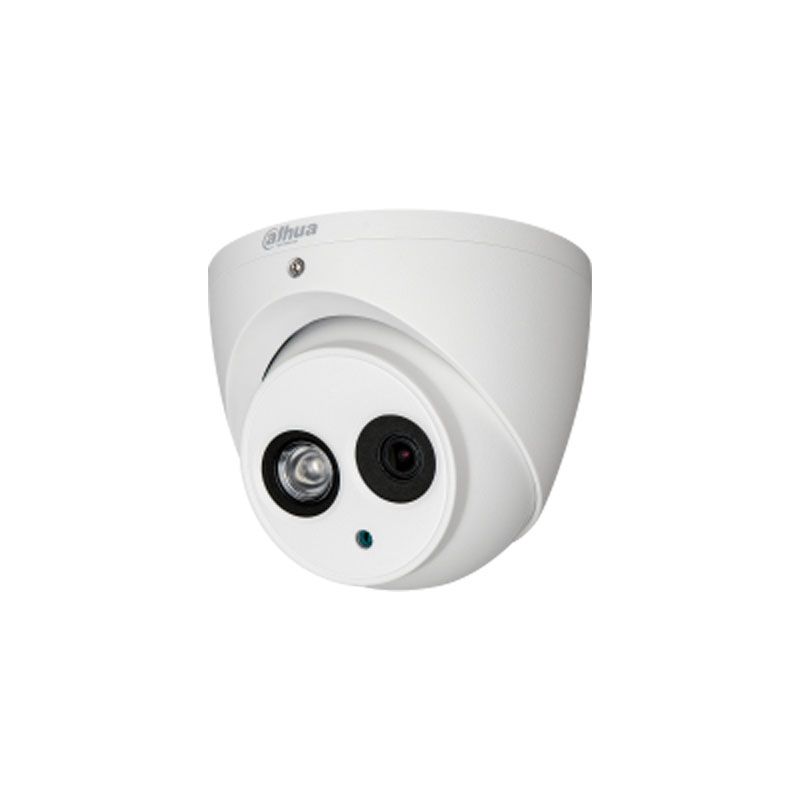

Quick Specs Figure 1 shows the appearance of HAC-HDW1400EM-A.
Table 1 shows the Quick Specs.
Image Sensor | 1/2.7″ CMOS |
Effective Pixels | 2560(H)Ă—1440(V), 4MP |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25~1/100000sNTSC: 1/30~1/100000s |
Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
S/N Ratio | More than 65dB |
IR Distance | Up to 50m (164feet) |
IR On/Off Control | Auto / Manual |
IR LEDs | 1 |
Lens Type | Fixed lens / Fixed iris |
Mount Type | Board-in |
Focal Length | 3.6mm (2.8mm, 6mm Optional) |
Max Aperture | F2.0 |
Angle of View | H: 76.4° (97°/48.6°)V: 41.6° (52°/27.9°) |
Focus Control | N/A |
Close Focus Distance | 1400mm (800mm/2500mm)55.1” (31.5”/98.4”) |
Detect | 25px/m(8px/ft) |
Observe | 63px/m(19px/ft) |
Recognize | 125px/m(38px/ft) |
Identify | 250ppm(76px/ft) |
Pan/Tilt/Rotation | Pan: 0° ~ 360°Tilt: 0° ~ 78°Rotation: 0° ~ 360° |
Resolution | 4MP (2560Ă—1440) |
Frame Rate | 25/30fps@4MP, 25/30fps@1080P |
Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
Day/Night | Auto (ICR) / Manual |
OSD Menu | Multi-language |
BLC Mode | BLC / HLC / DWDR |
WDR | DWDR |
Gain Control | AGC |
Noise Reduction | 2D |
White Balance | Auto / Manual |
Smart IR | Auto / Manual |
Certifications | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Audio Interface | Built-in mic |
Power Supply | 12V DC ±30% |
Power Consumption | Max. 3.9W (12V DC, IR on) |
Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH* Start up should be done at above -40°C (-40°F) |
Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
Ingress Protection &Vandal Resistance | IP67 |
Casing | Aluminium |
Dimensions | Φ106mmĂ—93.7mm (Φ4.17″Ă—3.69″) |
Net Weight | 0.41kg (0.90lb) |
Gross Weight | 0.51kg (1.12lb) |
