HAC-HDW1400M
Model: HAC-HDW1400M – Dahua 4MP CVI
Details: Dahua 4MP HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HAC-HDW1400M Overview

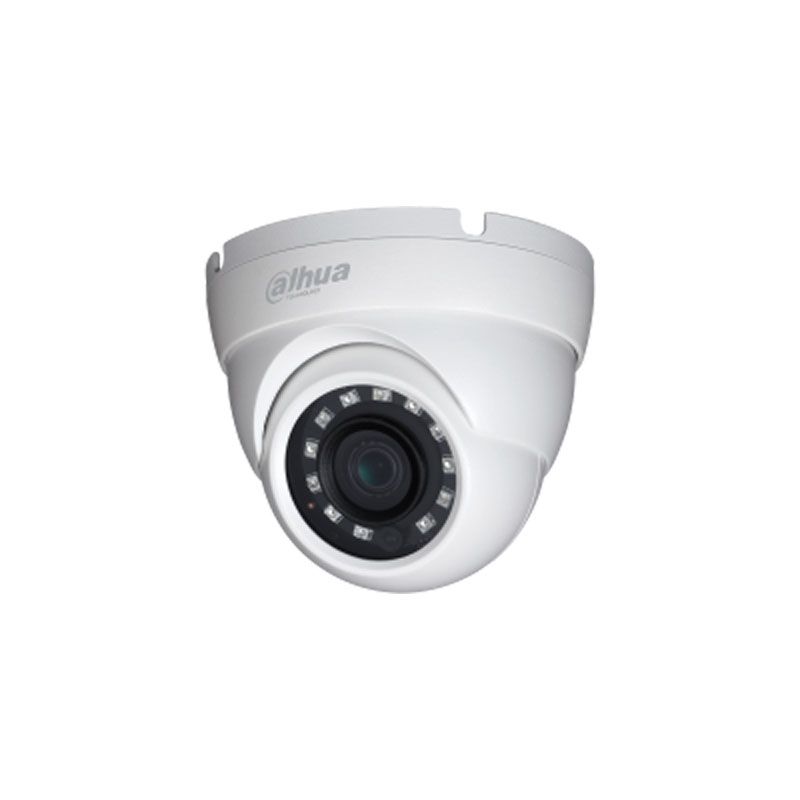

Quick Specs Figure 1 shows the appearance of HAC-HDW1400M.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-HDW1400M |
| Camera Type | 4MP HDCVI IR Eyeball Camera |
| Image Sensor | 1/3″ CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| Scanning System | Progressive |
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 20m (66ft) |
| IR LEDs | 2 |
| Lens Type | Fixed lens / Fixed iris |
| Focal Length | 2.8mm, 3.6mm, 6mm |
| Camera Angle of View | 2.8mm: 104° |
| Video Frame Rate | 30fps@4MP, 30/25fps@1080P |
| Video Output | 1-channel BNC HDCVI high definition video output |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| Backlight Compensation | BLC / HLC / DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Power Supply | DC12V°10% |
| Power Consumption | Max. 3.5W (12V DC, IR on) |
| Operating Conditions | -40°C~+60°C / Less than 90% RH |
