HAC-HDW1400R
Model: HAC-HDW1400R – Dahua 4MP CVI
Details: Dahua 4MP HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDW1400R Overview

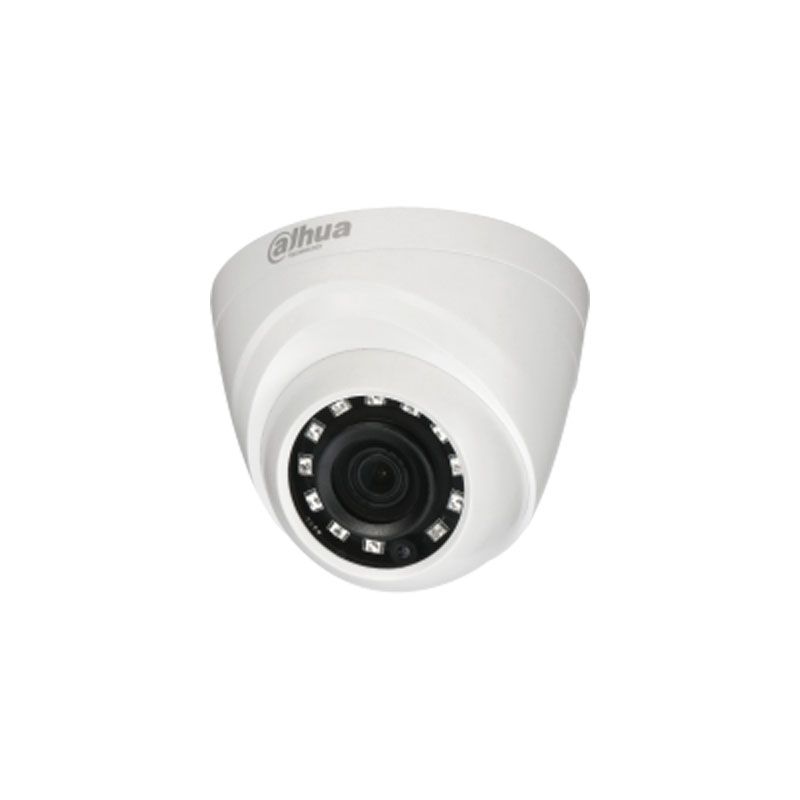

Quick Specs Figure 1 shows the appearance of HAC-HDW1400R.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 2560(H)×1440(V), 4MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000sNTSC: 1/30~1/100000s |
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 20m (66feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 12 |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F2.0 |
| Angle of View | H: 76.4° (97°/48.6°)V: 41.6° (52°/27.9°) |
| Focus Control | N/A |
| Close Focus Distance | 1400mm (800mm/2500mm)55.1” (31.5”/98.4”) |
| Detect | 25px/m(8px/ft) |
| Observe | 63px/m(19px/ft) |
| Recognize | 125px/m(38px/ft) |
| Identify | 250ppm(76px/ft) |
| Pan/Tilt/Rotation | Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotation: 0° ~ 360° |
| Resolution | 4MP (2560×1440) |
| Frame Rate | 25/30fps@4MP, 25/30fps@1080P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | N/A |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max 3.7W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH* Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection &Vandal Resistance | N/A |
| Casing | Plastic |
| Dimensions | Φ85.4mm×69.1mm (Φ3.36″×2.72″) |
| Net Weight | 0.11kg (0.24lb) |
| Gross Weight | 0.17kg (0.37lb) |
