HAC-HDW1509TL-LED
Model: HAC-HDW1509TL-LED – Dahua 5MP CVI
Details: Dahua 5MP Full-color Starlight HDCVI Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HAC-HDW1509TL-LED Overview

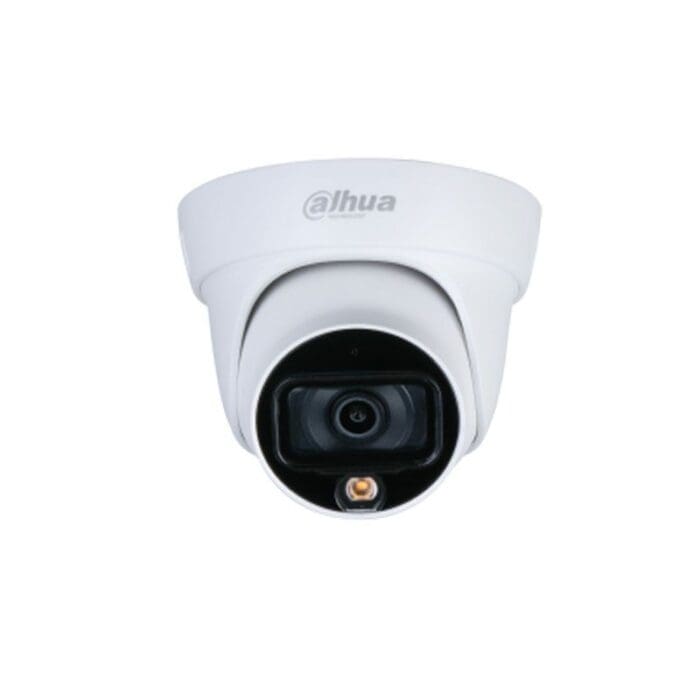

Quick Specs Figure 1 shows the appearance of HAC-HDW1509TL-LED.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-HDW1509TL-LED |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 2592(H)??1944(V), 5MP |
| Scanning System | Progressive |
| Minimum Illumination | 0.005 Lux/F1.6, 0 Lux (LED on) |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 20m |
| IR On/Off Control | Auto / Manual |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | M12 |
| Focal Length | 2.8mm (3.6mm optional) |
| Max Aperture | F1.6 |
| Angle of View | H: 104?? (87.5??) |
| Video Frame Rate | 25/30fps@5MP, 25/30/50/60fps@1080P |
| Video Output | 1-channel BNC HDCVI high-definition video output/ CVBS video output (can switch) |
| OSD Menu | Multi-language |
| Day/Night | Auto (ICR) / Manual |
| Noise Reduction | 2D/3D |
| Operating Conditions | -40??C ~ +60??C (-40??F ~ +140??F) / Less than 95% RH |
| Power Supply | 12V DC ??30% |
