HAC-HFW1509TLM-A-LED
Model: HAC-HFW1509TLM-A-LED – Dahua 5MP CVI
Details: Dahua 5MP Full-color Starlight HDCVI Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HAC-HFW1509TLM-A-LED Overview

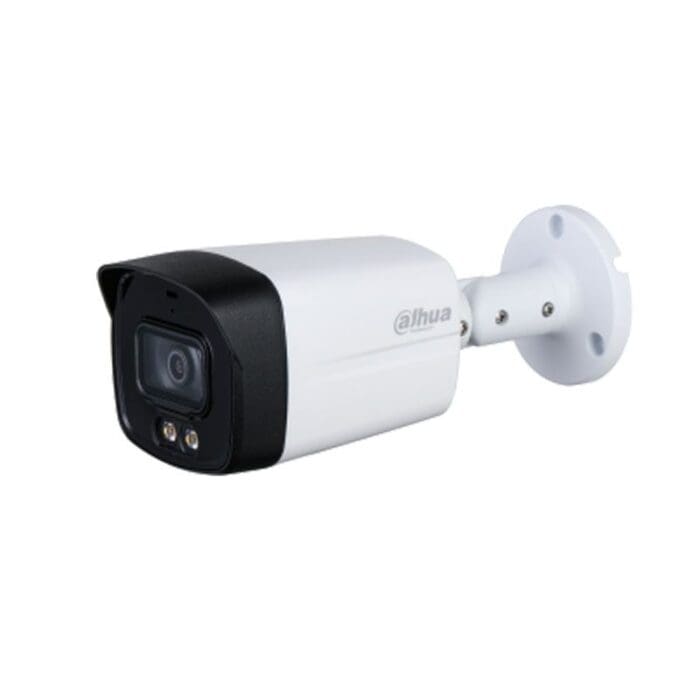

Quick Specs Figure 1 shows the appearance of HAC-HFW1509TLM-A-LED.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-HFW1509TLM-A-LED |
| Image Sensor | 1/2.7-inch CMOS |
| Effective Pixels | 2592(H) x 1944(V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s?C1/100000s, NTSC: 1/30s?C1/100000s |
| Minimum Illumination | 0.001 Lux at F1.0 |
| LED Distance | Up to 40m |
| Day/Night | Auto(ICR)/Color/B/W |
| Max IR LEDs Length | 40m |
| Lens Type | Fixed |
| Focal Length | 3.6mm |
| Lens Mount | M12 |
| Video Frame Rate | 25/30fps@5MP, 25/30fps@4MP, 25/30fps@1080P |
| Video Output | 1-channel BNC HD-CVI high definition video output & 1-channel BNC CVBS analog video output |
| Audio Interface | Built-in Mic |
| Power Supply | 12V DC ??30% |
| Power Consumption | Max. 6.4W (12V DC, IR on) |
| Ingress Protection | IP67 |
| Operating Conditions | -40??C to +60??C, Less than 95% RH |
| Dimensions | 199.0mm ?? 86.0mm ?? 82.2mm |
| Net Weight | 0.70kg |
