HAC-HFW2501T-Z-A-DP

Original price was: $97.00.Current price is: $92.15.

Model: HAC-HFW2501T-Z-A-DP – Dahua 5MP CVI
Details: 5MP Starlight HDCVI IR Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: HAC-HFW2501T-Z-A-DP Categories: , ,
Description

HAC-HFW2501T-Z-A-DP Overview

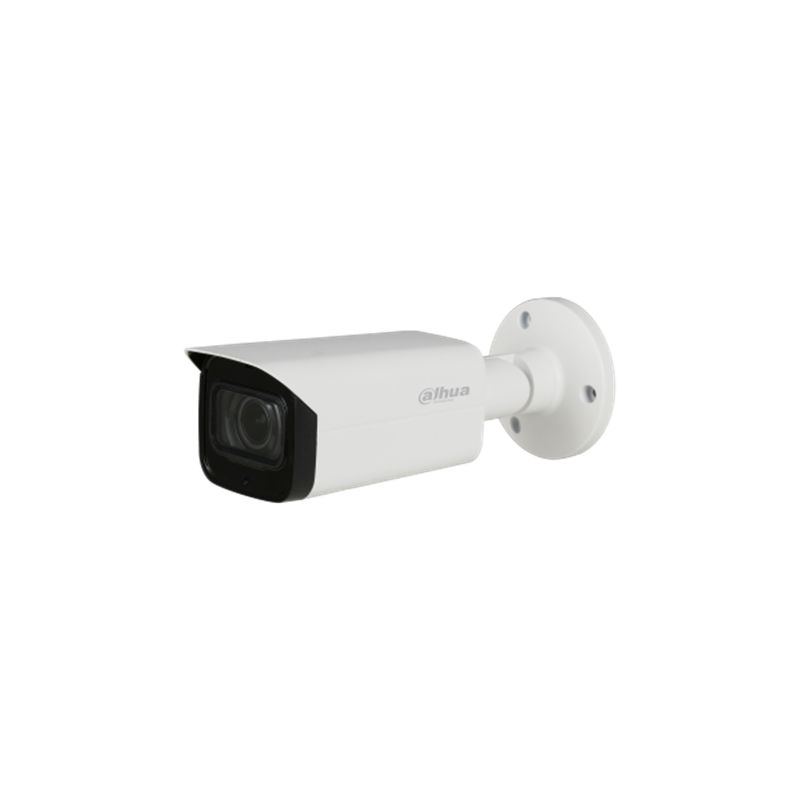

Quick Specs Figure 1 shows the appearance of HAC-HFW2501T-Z-A-DP.

Table 1 shows the Quick Specs.

Image Sensor 1/2.8″ CMOS
Effective Pixels 2592(H)x1944(V), 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100,000sNTSC: 1/3s~1/100,000s
Minimum Illumination 0.005Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 80m (262feet)
IR On/Off Control Auto/ Manual
IR LEDs 4
Lens Type Motorized lens / Fixed iris
Mount Type Board-in
Focal Length 2.7-13.5mm
Max Aperture F1.3
Angle of View H: 102°~29°
Focus Control Auto / Manual
Close Focus Distance 200mm7.87″
Wide Tele
Detect 25px/m (8px/ft)
Observe 63px/m (19px/ft)
Recognize 125px/m (38px/ft)
Identify 250px/m (76px/ft)
Pan/Tilt/Rotation Pan: 0°~ 360°Tilt: 0°~ 90°Rotation: 0°~ 360°
Resolution 5MP (2592×1944)
Frame Rate 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface 1ch in & Built-in Mic
Power Supply AC 24V±30% / DC 12V±30%
Power Output DC 12V / Max. 2W
Power Consumption Max 17.2W (12V DC, IR on)
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH* Start up should be done at above -30°C (-22°F)
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & VandalResistance IP67
Casing Aluminium
Dimensions 244.1mm x 90.4mm x 90.4mm (9.61″ x 3.56″ x 3.56″)
