HAC-HFW2601E-A

Original price was: $64.00.Current price is: $60.80.

Model: HAC-HFW2601E-A – Dahua 6MP CVI
Details: 6MP WDR HDCVI IR Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

SKU: HAC-HFW2601E-A Categories: , ,
Description

HAC-HFW2601E-A Overview

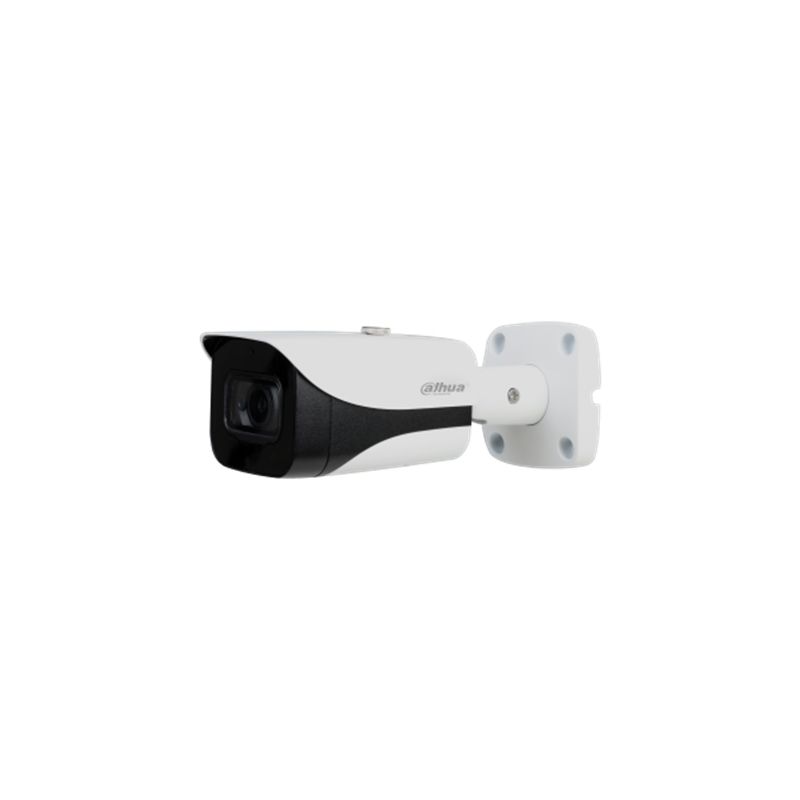

Quick Specs Figure 1 shows the appearance of HAC-HFW2601E-A.

Table 1 shows the Quick Specs.

Image Sensor 1/2.9″ CMOS
Effective Pixels 2880(H)x1920(V), 6MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100,000sNTSC: 1/3s~1/100,000s
Minimum Illumination 0.01Lux/F1.9, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 40m (130feet)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.9
Angle of View H: 70°(89°/47°)
Focus Control N/A
Close Focus Distance 1500mm (900mm, 3900mm)59” (35.4”, 153.5′)
Detect 25px/m (8px/ft)
Observe 63px/m (19px/ft)
Recognize 125px/m (38px/ft)
Identify 250px/m (76px/ft)
Pan/Tilt/Rotation Pan: 0°~ 360°Tilt: 0°~ 90°Rotation: 0°~ 360°
Resolution 6MP (2880×1920)
Frame Rate 20fps@6MP, 25/30fps@4MP
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface 1ch in & Built-in Mic
Power Supply 12V DC±30%
Power Consumption Max 6.8W (12V DC, IR on)
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH* Start up should be done at above -30°C (-22°F)
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & VandalResistance IP67
Casing Aluminium
Dimensions 179.9mm x 70mm x 70mm (7.08″ x 2.76″ x 2.76″)
