HAC-HM3100L-F
Model: HAC-HM3100L-F – Dahua Mobile
Details: Dahua 1.3MP Forward HDCVI Mobile Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HAC-HM3100L-F Overview

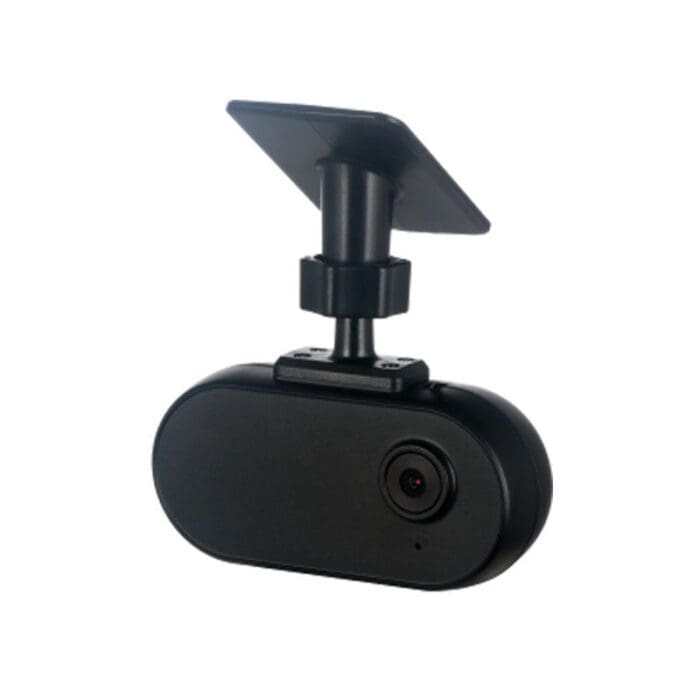

Quick Specs Figure 1 shows the appearance of HAC-HM3100L-F.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1280(H)×720(V), 1.3MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000sNTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02Lux/F2.0, 0.002lux/F2.0(B/W) |
| S/N Ratio | More than 65dB |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Max Aperture | F2.0 |
| Angle of View | H: 116° |
| Focus Control | N/A |
| Pan/Tilt/Rotation | Pan: 0° ~ 30°Tilt: 0° ~ 30°Rotation: 0° ~ 360° |
| Resolution | 720P (1280×720) |
| Frame Rate | PAL:1280×720@50fps, 1280×720@25fps;NTSC:1280×720@60fps, 1280×720@30fps |
| Video Output | 1-channel HDCVI high definition video output (Aviation connector) |
| Day/Night | Color |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Detect | 25px/m(8px/ft) |
| Observe | 63px/m(19px/ft) |
| Recognize | 125px/m(38px/ft) |
| Identify | 250ppm(76px/ft) |
| Certifications | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)EN50155 (EN50121-3-2, IEC61373) |
| Audio Interface | 1-channel Built-in Mic |
| Aviation Connector Interface | 1-power2-video ground3-power ground4-video |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max 0.9W |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH* Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | N/A |
| Casing | Plastic |
| Dimensions | 115..8×99.5×27.4mm (4.56″×3.92″×1.08″) |
| Weight | 0.085kg (0.187lb) |
