-5%
IPC-A35
Model: IPC-A35 – Dahua 3MP IP Cameras
Details: 3MP A Series Wi-Fi Network PT Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-A35 Overview

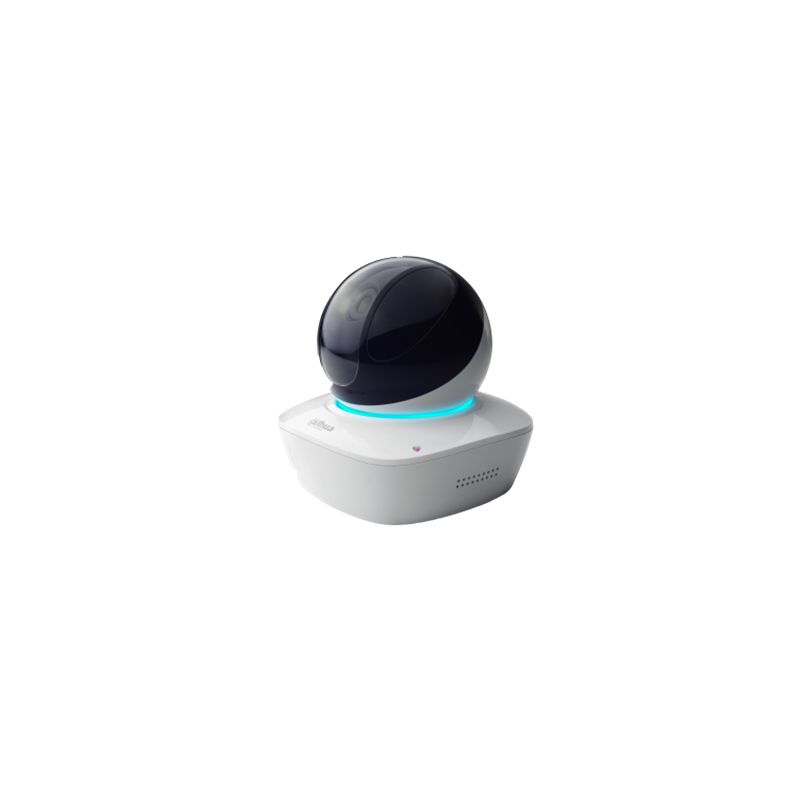

Quick Specs Figure 1 shows the appearance of IPC-A35.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3″ 3Megapixel progressive CMOS |
| Effective Pixels | 2304(H) x1536(V) |
| RAM/ROM | 256MB/16MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.78Lux/F2.0(Color), 0Lux/F2.0(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 10m(33ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 3.6mm |
| Max Aperture | F2.0 |
| Angle of View | H:77°;V:42° |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| Detect | 25px/m (8px/ft) |
| Observe | 63px/m (19px/ft) |
| Recognize | 125px/m (38px/ft) |
| Identify | 250px/m (76px/ft) |
| Pan/Tilt Range | Pan:0°~355°;Tilt:0°~90°;Rotation:0°~355° |
| Compression | G.711A;G.711Mu;AAC |
| Streaming Capability | 2 Streams |
| Resolution | 3M(2048Â x 1536)/3M(2304Â x 1296)/1080P(1920Â x 1080)/1.3M(1280Â x 960)/720P(1280Â x 720)/VGA(640Â x 480)/QVGA(320Â x 240) |
| Frame Rate | 3MP(1~20fps)/2M(1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H264:32K ~ 10240Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Electronic Image | Support |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n),50m(open field) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;Bonjour;Multicast;ICMP;IGMP; |
| Interoperability | PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NAS(Network Attached Storage),Local PC for instant recording, Micro SD Card(up to 128GB) |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS,Lechange |
| Smart Phone | iOS, Android |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | N/A |
| Audio Interface | Built-in Mic & Speaker |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC5V 2A |
| Power Consumption | <8.5W |
| Operating Conditions | -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
| Strorage Conditions | -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
| Ingress Protection | N/A |
| Vandal Resistance | N/A |
| Casing | Plastic |
| Dimensions | 94.4mm x 94.4mm x 94.4mm(3.72″ x3.72″Â x3.72″) |
