IPC-B2B20-L-ZS
Model: IPC-B2B20-L-ZS – Dahua 2MP IP Cameras
Details: 2MP IR Mini-Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-B2B20-L-ZS Overview

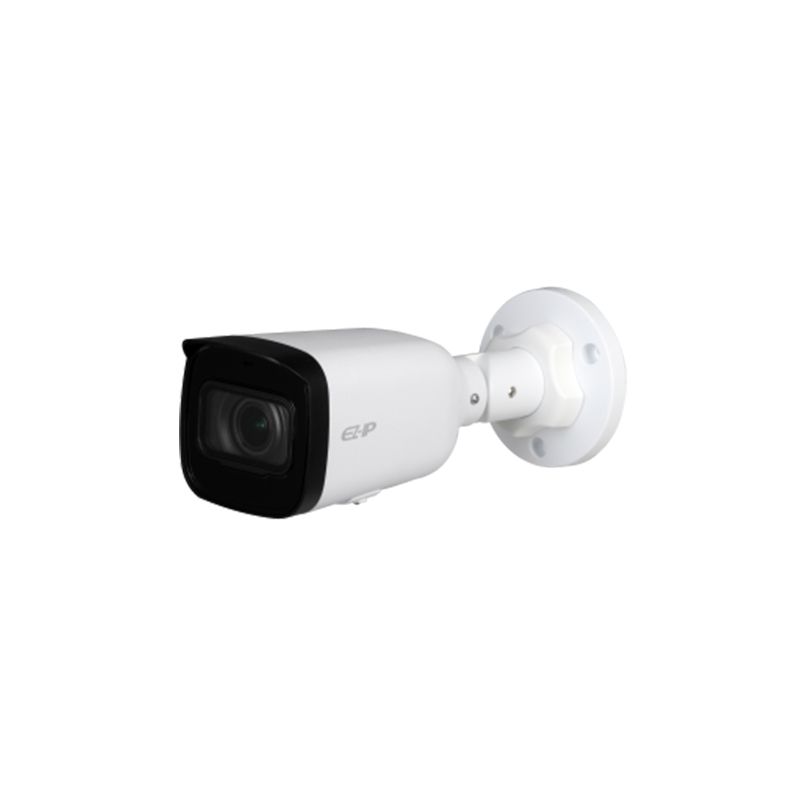

Quick Specs Figure 1 shows the appearance of IPC-B2B20-L-ZS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7” 2Megapixel progressive CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| RAM/ROM | 64MB/16MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.05Lux/F1.8( Color,1/3s,30IRE)0.3Lux/F1.8( Color,1/30s,30IRE)0Lux/F1.8(IR on) |
| S/N Ratio | More than 40dB |
| IR Distance | Distance up to 40m(131ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 2.8mm~12mm |
| Max. Aperture | F1.8 |
| Angle of View | H:105°~33°, V:56°~18° |
| Focus Control | Motorized |
| Close Focus Distance | 0.2m(0.66ft) |
| DORI Distance | Lens |
| W | 44m(144.4ft) |
| T | 133m(436.4ft) |
| Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° |
| Event Trigger | Motion detection, Video tampering , Network disconnection, IP address conflict, Illegal Access,Storage anomaly |
| Compression | N/A |
| Smart Codec | Support H.265+/H.264+ |
| Streaming Capability | 2 Streams |
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream: 1080P(1 ~ 20fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 16K~6144KH.265: 6K~ 6144K |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;FTP;DHCP;DNS;IPV4;NTP;Multicast;ICMP;IGMP;TLS |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NAS(Network Attached Storage)Local PC for instant recordingMicro SD Card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | CE: (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption | DC12V: 1.8W, 5.8W(IR On)PoE: 2.1W, 6.7W(IR On) |
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Casing | Metal+Plastic |
| Dimensions | 243.6mm×90.7mm×90.2mm (9.59”×3.57”×3.55”) |
