IPC-EBW81242
Model: IPC-EBW81242 – Dahua 12MP IP Cameras
Details: Dahua 12MP Panoramic Network IR Fisheye Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-EBW81242 Overview

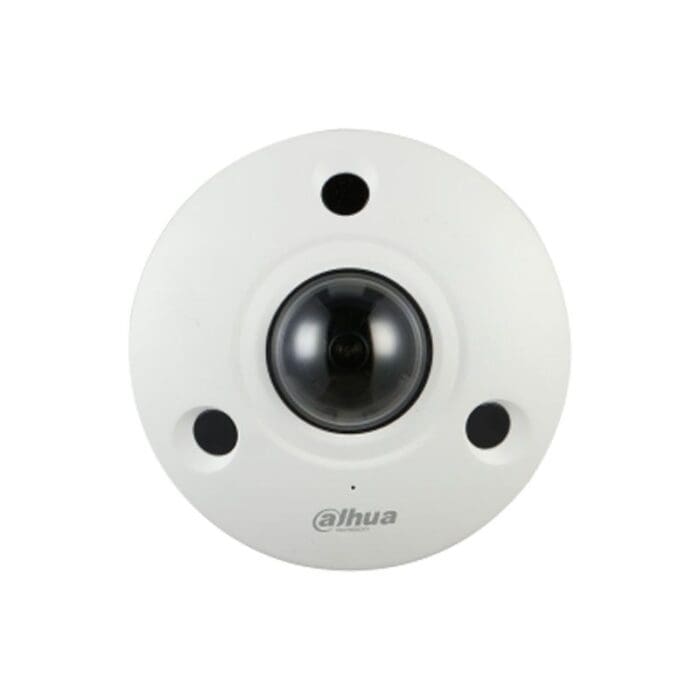

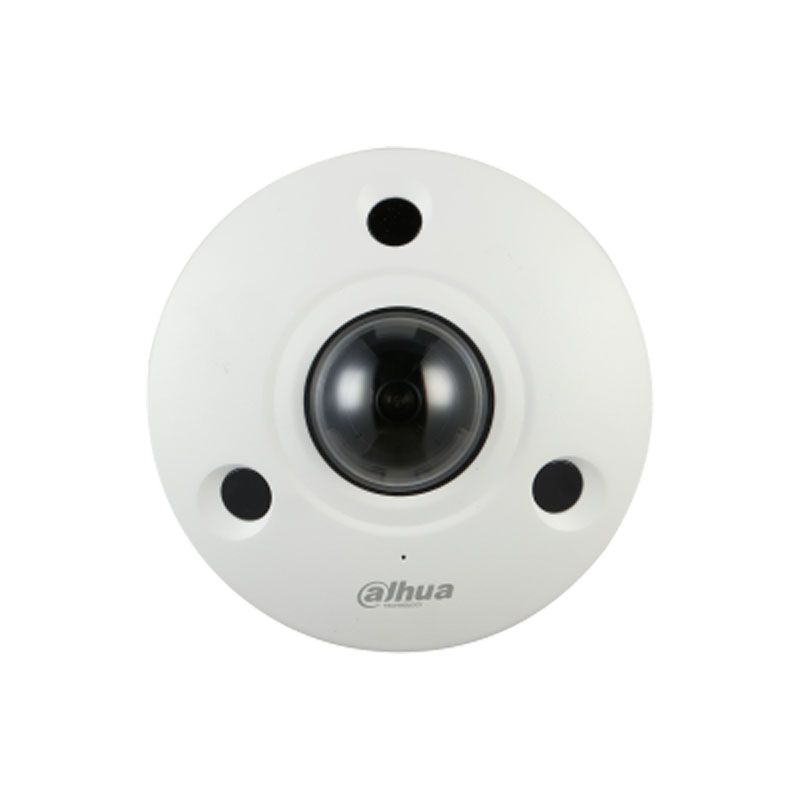

Quick Specs Figure 1 shows the appearance of IPC-EBW81242.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.7” CMOS |
| Effective Pixels | 4000 (H) × 3000 (V) |
| ROM | 4 GB |
| RAM | 4 GB |
| IR LEDs | 3 (IR LEDs) |
| Electronic Shutter Speed | 1/3 s-1/100000 s (Auto/Manual) |
| Min. Illumination | 0.001 Lux/F2.0 (Colour, 1/3 s, 30 IRE)0.01 Lux/F2.0 (Colour,, 1/30 s, 30 IRE)0 Lux/F2.0 (IR on) |
| IR Distance | 10 m (32.8 ft) |
| Scan | Progressive |
| Noise Reduction | 3D DNR |
| WDR | DWDR |
| S/N Ratio | 49.7dB |
| Gain control | Manual |
| White Balance | Auto/Natural/street lamp/outdoor/manual/regional Custom |
| Focal Length | 1.85 mm |
| Mount Type | M12 |
| Max. Aperture | F2.0 |
| Aperture Type | Fixed aperture |
| Lens Type | Fixed focal |
| Field of View | Horizontal: 185°; Vertical: 180° |
| DORI Distance | Detect |
| 40.0 m (131.3 ft) | 16.0 m(52.6 ft) |
| Audio Input | 1 channel (RCA port),1 build in MIC |
| Audio Output | 1 channel (RCA port) |
| Audio Encoding | G.711A, G.711Mu, G726, AAC |
| Video Encoding | H.265, H.264, H.264H, H.264B, MJPEG |
| Video Bit Rate | H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps |
| Video Frame Rate | 50Hz Main Stream (4000 × 3000@25fps), sub Stream (704 × 576@25fps), third Stream (704 × 576@25fps)60Hz Stream (4000 × 3000@30fps), sub Stream (704 × 480@30fps), third Stream (704 × 480@30fps)Fisheye:1O (4000 x 3000)1P (4096 x 1024)2P (2432 x 2432)1R (1216 x 1216)2R (2432 x2432)4R (2432 x 2432)1O + 3R (2432 x 2432) |
| Resolution | 4000 × 3000, 2880 × 2880, 2880 × 2160, 2048 × 1536 (3M), 1280 × 960 (1.3M), (704 × 576/704 × 480) D1, (352 × 288/352 × 240) CIF |
| Bit Rate Control | CBR/VBR |
| Region of Interest | Yes (4 areas) |
| Smart IR | Yes (Adjust by user) |
| Language | English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Korean, Persian, Czech, Dutch, Arabic, European Spanish |
| Alarm Input | 2 channels (Wet contact, and it supports max potential 3V-5V) |
| Alarm Output | 2 channels (Dry contact, and it supports max potential 30V) |
| SD Card | Yes |
| Storage | FTP, Micro SD card (256 G) |
| Max User | 20 (Total bandwidth: 240 M) |
| Browser | IE: IE11, IE10, IE9Google of high version: 48.0.2564.116Firefox of high version: 48.0.2Non-plug edge: 42.17134.1.0 |
| Privacy Masking | 4 areas |
| IVS Analyze | Intrusion, tripwire |
| Heat Map | Yes |
| People Counting | People counting in 4 areas, number of people threshold alarm, 4 queue management, stranding alarm, number of people alarm, number of people heat map, average stranding heat map, track map and export (Report max range is 1 week.) |
| Network Protocol | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Interoperability | ONVIF (Profile S/Profile G), GB/T28181, CGI |
| Power Supply | 12V DC /POE |
| Power Consumption | Basic power consumption: 6.2W (12V DC), 9.2W (POE)Max power consumption: (ICR switch, and IR full intensity): 9.2W (12V DC), 12.9W (POE) |
| Operating Temperature | -30°C to +45°C (-22°F to +113°F) |
| Operating Humidity | ≤95% |
| StrorageTemperature | -30°C to +70°C (-22°F to +158°F) |
| Strorage Humidity | ≤95% |
| Protection Grade | IP67, IK10 |
| Enclosure | Metal + Plastic |
| Dimensions | 59.8 mm × Φ149.8 mm (2.35” × Φ5.9”) |
| Net Weight | 0.77 kg(1.70 lb) |
| Gross Weight | 1.16 kg(2.56 lb) |
| Certification | CE-LVD:EN60950-1EN 55032: 2015, Class BEN 61000-3-2: 2014EN 61000-3-3: 2013EN 55024: 2010+A1: 2015EN 55035: 2017EN 50130-4: 2011+A1: 2014CE-EMC:Electromagnetic Compatibility Directive 2014/30/EUFCC:47 CFR FCC Part15, Subpart B, Class BUL/CUL:UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
