IPC-EW5531-AS

Original price was: $166.00.Current price is: $157.70.

Model: IPC-EW5531-AS – Dahua 5MP IP Cameras
Details: 5MP Panoramic Network IR Fisheye Camera;
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-EW5531-AS Categories: , ,
Description

IPC-EW5531-AS Overview

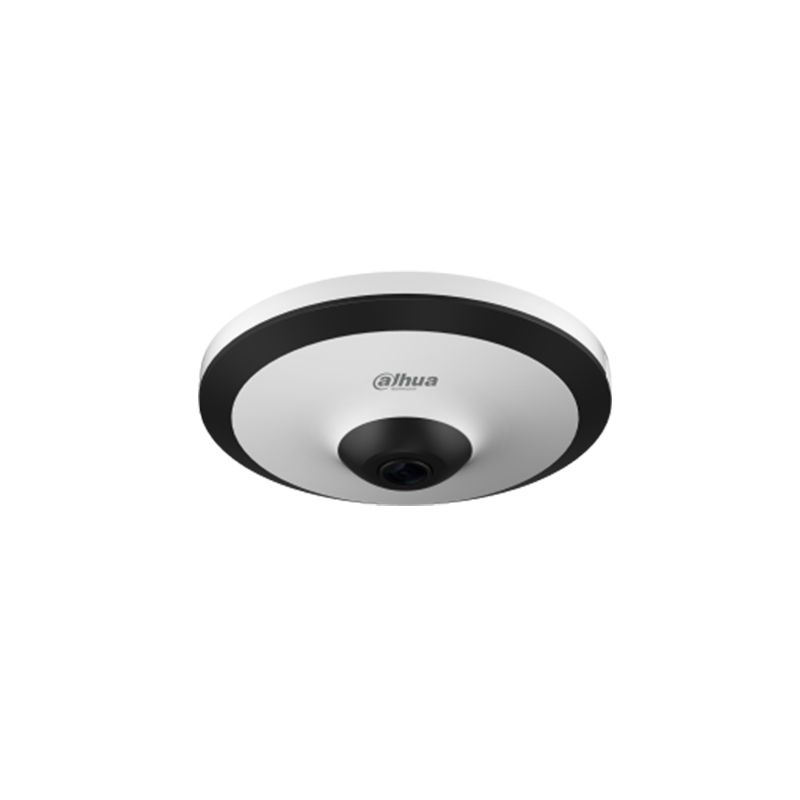

Quick Specs Figure 1 shows the appearance of IPC-EW5531-AS.

Table 1 shows the Quick Specs.

Image Sensor 1/2.7” 5Megapixel progressive scan CMOS
Effective Pixels 2592(H)x1944(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.006Lux/F2.0( Color,1/3s,30IRE)0.02Lux/F2.0( Color,1/30s,30IRE)0Lux/F2.0(IR on)
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 3
Lens Type Fixed
Mount Type Board-in
Focal Length 1.4mm
Max. Aperture F2.0
Angle of View H: 180˚, V:180˚
Optical Zoom N/A
Aperture type Fixed
Close Focus Distance N/A
DORI Distance Detect
28m(92ft) 11m(36ft)
Pan/Tilt/Rotation Range N/A
IVS Tripwire, Intrusion
Advanced Intelligent Functions Heat Map
Compression G.711a/G.711Mu/PCM
Smart Code Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 5M(2582×1944)/ 3M(2048×1536)/ UXGA(1600×1200)/ 1.3M(1280×960)/ 1080P(1920×1080)/ 720P(1280X720)/ D1(704×576/VGA(640X480)/ CIF(352×288)
Frame Rate Main Stream: 5M(1~25fps)
Bit Rate Control CBR/VBR
Bit Rate H.265: 3Kbps~ 40960KbpsH.264: 3Kbps~ 40960Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip N/A
Mirror N/A
Privacy Masking Off / On (4 Area, Rectangle)
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; RTMP
Interoperability ONVIF, CGI, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NASLocal PC for instant recordingMicro SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications CE (EN 60950:2000)UL: UL60950-1FCC: FCC Part 15 Subpart B
Video Interface N/A
Audio Interface 1/1 channel In/Out, 1 Built-in Mic
RS485 N/A
Alarm 1 channel In: 5mA 5VDC1 channel Out: 300mA 12VDC
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption DC12V: 2.7W 8.2W(IR on)PoE: 3.3W 10.1W(IR on)
Operating Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Strorage Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A
Casing Metal+Plastic
Dimensions Φ126.2mm×44.7mm(Φ4.9”×1.8”)
