Sold out
IPC-HDB4431C-AS
Model: IPC-HDB4431C-AS – Dahua 4MP IP Cameras
Details: Dahua 4MP Mini Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
IPC-HDB4431C-AS Overview

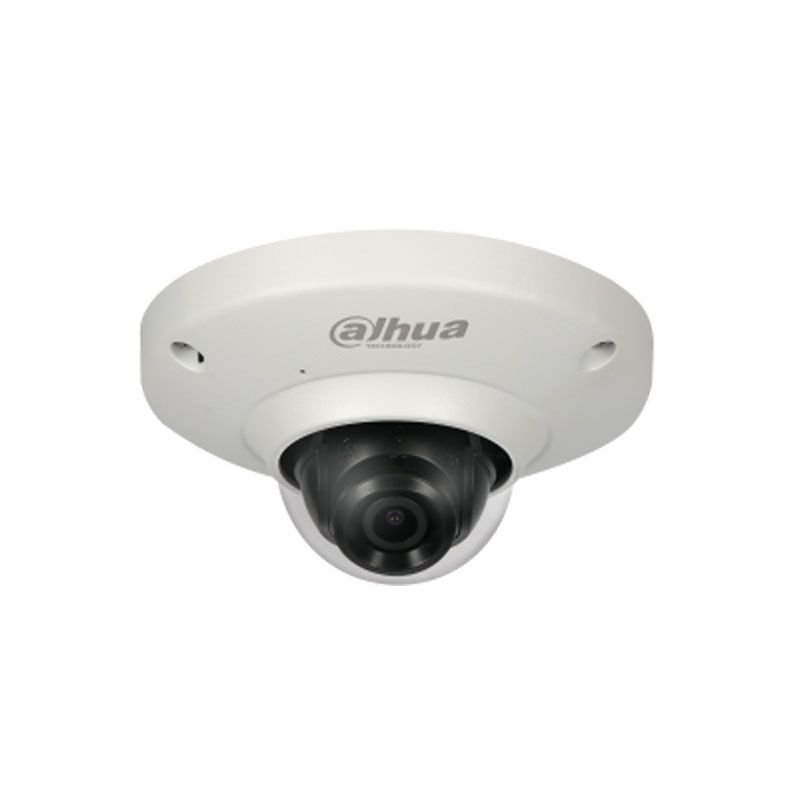

Quick Specs Figure 1 shows the appearance of IPC-HDB4431C-AS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3” 4Megapixel progressive scan CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| RAM/ROM | 512MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE)0.3Lux/2.0( Color,1/30s,30IRE)0.04Lux/F2.0( B/W,1/3s,30IRE)0.2Lux/2.0( B/W,1/30s,30IRE) |
| S/N Ratio | More than 50dB |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm(3.6mm optional） |
| Max. Aperture | F2.0 (F2.0) |
| Angle of View | H: 104° (87°) , V: 57° (48°) |
| Optical Zoom | N/A |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| DORI Distance | Lens |
| 2.8 mm | 63m(207ft) |
| 3.6 mm | 80m(262ft) |
| Pan/Tilt/Rotation Range | Pan:0?~355?; Tilt:0?~75?; Rotation:0?~360? |
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection |
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Streaming Capability | 3 Streams |
| Resolution | 4M(2688×1520)/3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream:4M(1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24~10240KbpsH.265: 14~9984Kbps |
| Day/Night | Electronic |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic ImageStabilization (EIS) | N/A |
| Smart IR | N/A |
| Defog | N/A |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NASLocal PC for instant recordingMirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, Easy4ip |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | N/A |
| Audio Interface | Built-in Mic |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption | <3W |
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | N/A |
| Casing | Metal |
| Dimensions | Φ110mm×56mm (4.33”×2.2”) |
| Net Weight | 0.38Kg (0.84lb) |
| Gross Weight | 0.44Kg (0.97lb) |
