HAC-HFW1230D
HAC-HFW1230D Original price was: $40.00.Current price is: $38.00.
Back to products
IPC-HFW4631T-ASE
IPC-HFW4631T-ASE Original price was: $120.00.Current price is: $114.00.

IPC-HDBW1320E-W

Original price was: $65.00.Current price is: $61.75.

Model: IPC-HDBW1320E-W – Dahua 3MP IP Cameras
Details: 3MP IR Mini-Dome Wi-Fi Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-HDBW1320E-W Categories: , ,
Description

IPC-HDBW1320E-W Overview

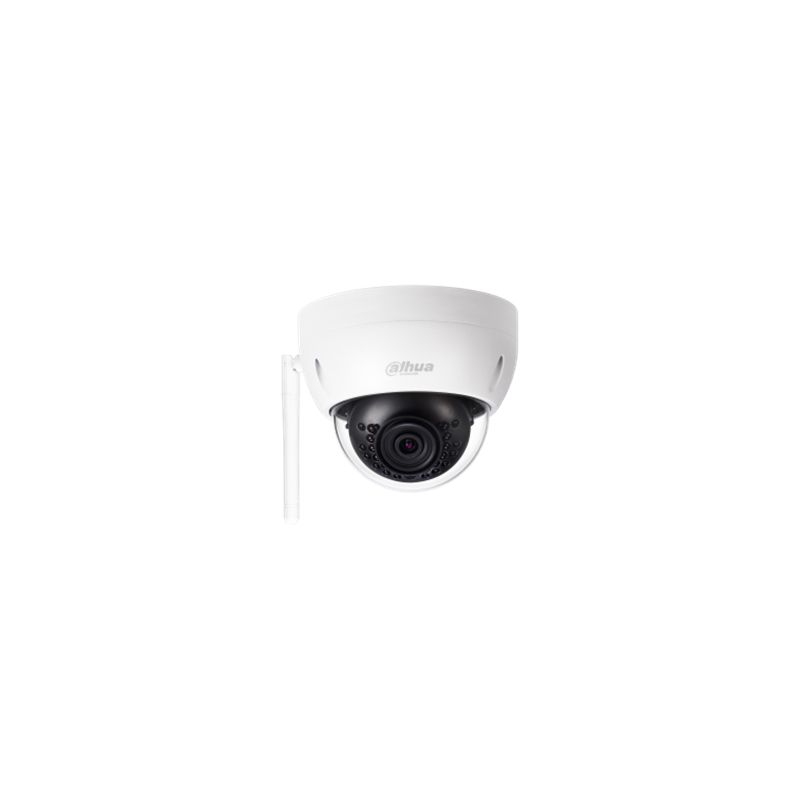

Quick Specs Figure 1 shows the appearance of IPC-HDBW1320E-W.

Table 1 shows the Quick Specs.

Image Sensor 1/3″ 3Megapixel progresive CMOS
Effective Pixels 2304(H)x1536(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Control Auto/ Manual
IR LEDs 24
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm
Max Aperture F2.5
Angle of View H:100°, V:55°
Focus Control Fixed
Close Focus Distance N/A
Pan/Tilt Range Pan:0°~355°;Tilt:0°~55°;Rotation:0°~355°
Compression N/A
Streaming Capability Capability 2 Streams
Resolution 3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/720P(1280×720)/VGA(640×480)/QVGA(320×240)
Frame Rate 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS(Network Attached Storage),Local PC for instant recording, 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone iPhone, iPad, Android Phone
Certifications CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Power Supply DC12V
Power Consumption <5.5W
Operating Conditions -10°C ~ +50°C (-14°F ~ +122°F) / Less than 95% RH
Strorage Conditions -10°C ~ +50°C (14°F ~ +122°F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Casing Metal
Dimensions Φ109.9mmx 81mm (4.33″ x 3.19″)

Get more information
Do you have any question about the IPC-HDBW1320E-W?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

100% Quality Assurance: All items are ORIGINAL and GENUINE only.

Free Technical Support: Our FREE Technical Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
