IPC-HDBW1831R-S

Original price was: $111.00.Current price is: $105.45.

Model: IPC-HDBW1831R-S – Dahua 8MP IP Cameras
Details: 8MP WDR IR Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-HDBW1831R-S Categories: , ,
Description

IPC-HDBW1831R-S Overview

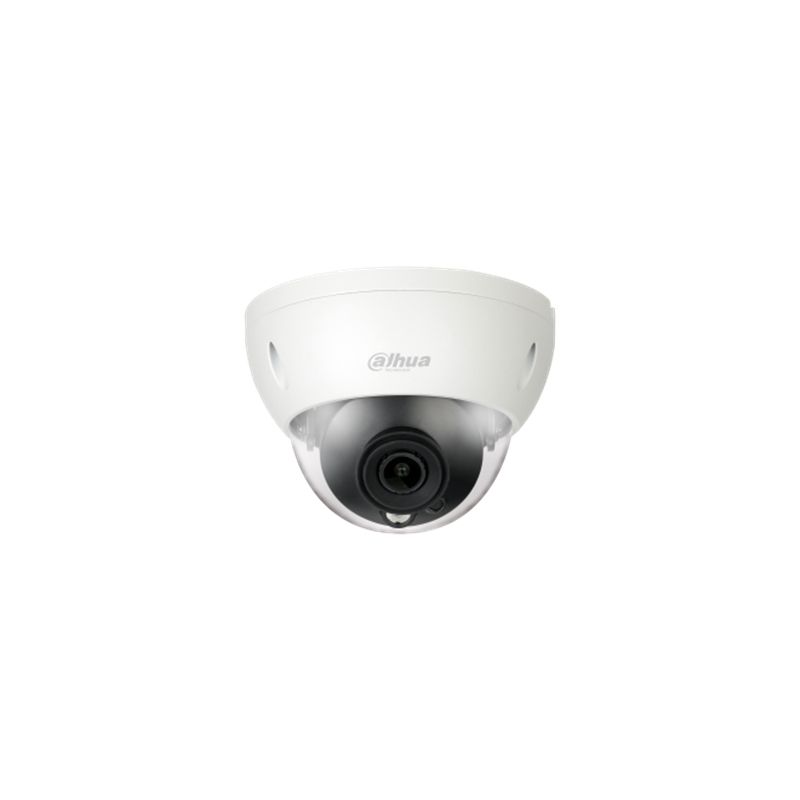

Quick Specs Figure 1 shows the appearance of IPC-HDBW1831R-S.

Table 1 shows the Quick Specs.

Image Sensor 1/1.8″ 8Megapixel progressive CMOS
Effective Pixels 3840(H) x2160(V)
RAM/ROM 512MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.003Lux/F1.6( Color,1/3s,30IRE)0.02Lux/F1.6 Color,1/30s,30IRE)0Lux/F1.6(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (4mm, 6mm optional)
Max.Aperture F1.6
Angle of View H:111°/87°/55°, V:59°/47°/30°
Aperture Type Fixed
Close Focus Distance 1.5m (4.9ft)
DORI Distance Lens
2.8mm 84m(275.6ft)
4mm 104m(341ft)
6mm 164m(538ft)
Pan/Tilt Range Pan:0°~355°;Tilt:0°~75°;Rotation:0°~355°
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS Tripwire, Intrusion
Compression N/A
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/3M(2048×1536)/3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4K (1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264:32Kbps~8192KbpsH.265: 16Kbps~8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability ONVIF Profile S&G, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NASLocal PC for instant recordingMicro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <8.9W
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Strorage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Casing Metal
Dimensions φ122mmx 88.9mm(4.80″x3.50″)
