IPC-HDBW2231R-ZS
Model: IPC-HDBW2231R-ZS – Dahua 2MP IP Cameras
Details: 2MP WDR IR Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDBW2231R-ZS Overview

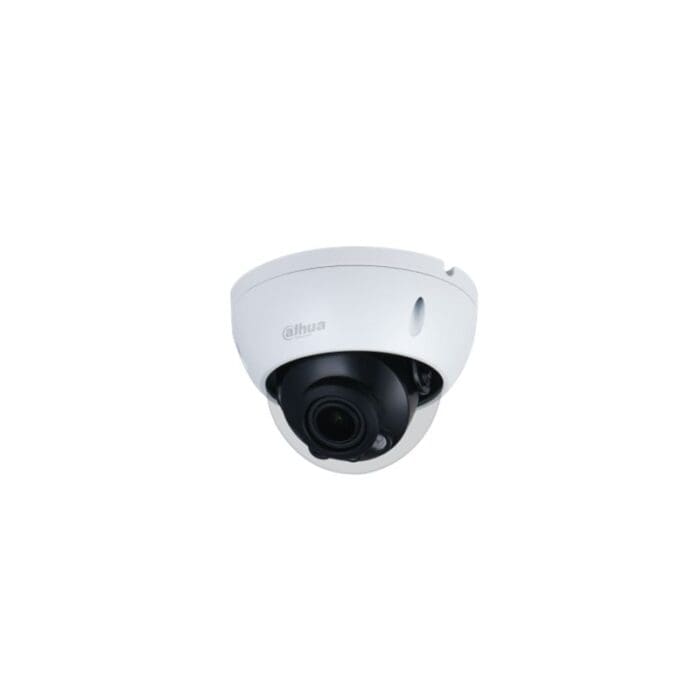

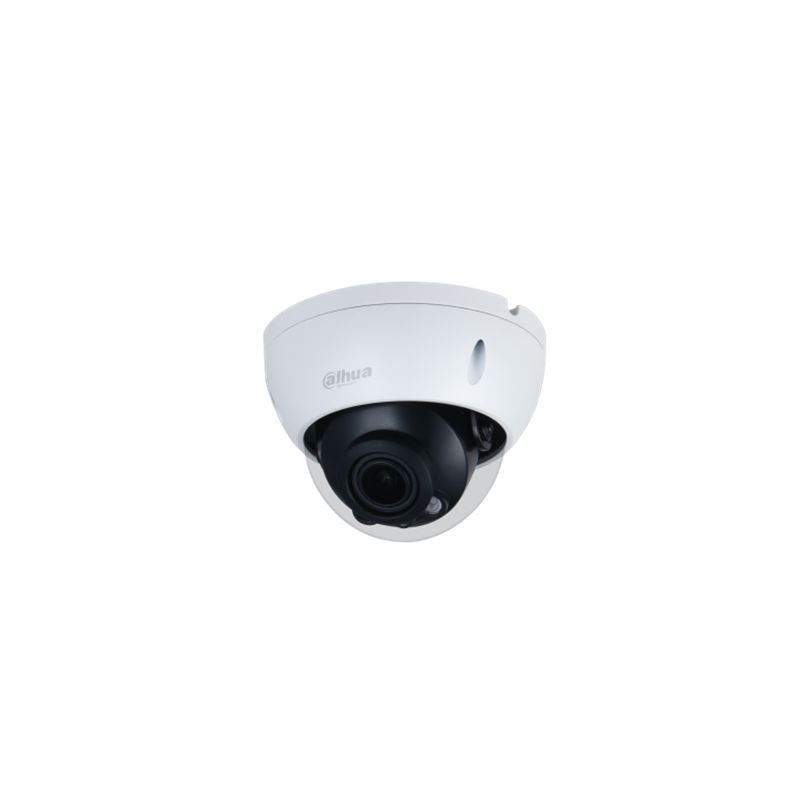

Quick Specs Figure 1 shows the appearance of IPC-HDBW2231R-ZS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″Â 2Megapixel progressive CMOS |
| Effective Pixels | 1920(H) x1080(V) |
| RAM/ROM | 512MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.006Lux/F1.4( Color,1/3s,30IRE)0.05Lux/F1.4( Color,1/30s,30IRE)0Lux/F1.4(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 30m(98ft) |
| IR On/Off Control | IR On/Off Control Auto/ Manual |
| IR LEDs | 2 |
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 2.7mm~13.5mm |
| Max Aperture | F1.4 |
| Angle of View | H:106°~29°, V:57°~17° |
| Focus Control | Motorized |
| Close Focus Distance | 0.2m |
| DORI Distance | Lens |
| W | 46m(151ft) |
| T | 153m(502ft) |
| Pan/Tilt Range | Pan:0°~355°;Tilt:0°~75°;Rotation:0°~355° |
| Event Trigger | Motion detection, Video tampering,Scene changing,Network disconnection,IP address conflict,Illegal acess,Storage anomaly |
| IVS | Tripwire, Intrusion |
| Compression | N/A |
| Smart Codec | Support H.265+/H.264+ |
| Streaming Capability | 2 Streams |
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream: 1080P(1 ~ 25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 12K ~ 6400KbpsH.264: 32K ~ 10240Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization(EIS) | N/A |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE802.1x;Multicast;ICMP;IGMP;TLS;SNMP |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NASLocal PC for instant recordingMicro SD Card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption | <9W |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Strorage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | Φ122mmx88.9mm(4.80”x3.50”) |
