Model: IPC-HDBW2531E-S-S2 – Dahua 5MP IP Cameras
Details: Dahua 5MP Lite IR Fixed-focal Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-HDBW2531E-S-S2 Categories: , ,
Description

IPC-HDBW2531E-S-S2 Overview

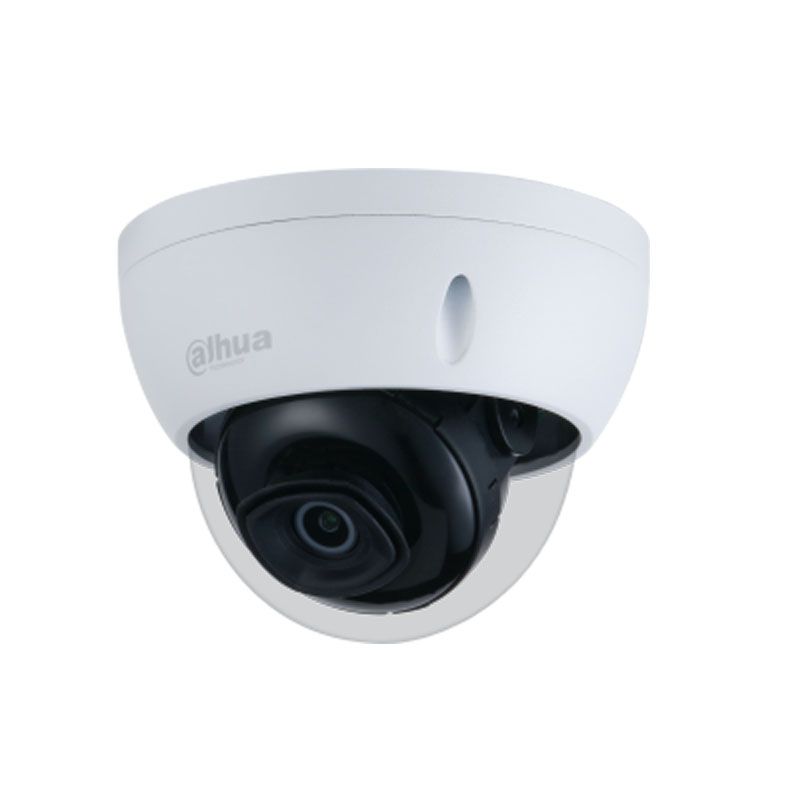

Quick Specs Figure 1 shows the appearance of IPC-HDBW2531E-S-S2.

Table 1 shows the Quick Specs.

Image Sensor 1/2.7” 5Megapixel progressive CMOS
Effective Pixels 2592 (H) × 1944 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.008 Lux @ F1.6
IR Distance 30 m (98.43 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 3
Pan/Tilt/Rotation Range Pan: 0°–355°Tilt: 0°–65°Rotation: 0°–355°
Lens Type Fixed
Mount Type M12
Focal Length 2.8 mm3.6 mm
Max. Aperture F1.6F1.6
Field of View 2.8 mm:Pan: 103.0°Tilt: 71.0°Diagonal: 132.0°3.6 mm:Pan: 84.0°Tilt: 58.0°Diagonal: 110.0°
Iris Type Fixed aperture
Close Focus Distance 2.8 mm: 0.9 m (2.95 ft)3.6 mm: 1.6 m (5.25 ft)
DORI Distance Lens
2.8mm 56 m(183.73 ft)
3.6mm 80 m(262.47 ft)
General IVS Analytics Tripwire; intrusion
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream:2592 × 1944 (1 fps-20 fps)2688 × 1520 (1 fps-25/30 fps)Sub stream:704 × 576 (1 fps-25 fps)704 × 480 (1 fps-30 fps)
Stream Capability 2 streams
Resolution 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–8192 KbpsH.265: 12 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec
Scene self-adaptation 20
User/Host 20
Edge Storage Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser IEChromeFirefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certifications CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply 12V DC/PoE (802.3af)
Power Consumption -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67, IK10
Casing Metal
Dimensions 81 mm × Φ109.9 mm (3.19″ × Φ4.33″)
Net Weight 0.350 kg (0.77 lb)
Gross Weight 0.491 kg (1.08 lb)
