IPC-HDBW3541F-AS-M
Model: IPC-HDBW3541F-AS-M – Dahua 5MP IP Cameras
Details: Dahua 5MP Lite AI IR Fixed focal Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
IPC-HDBW3541F-AS-M Overview

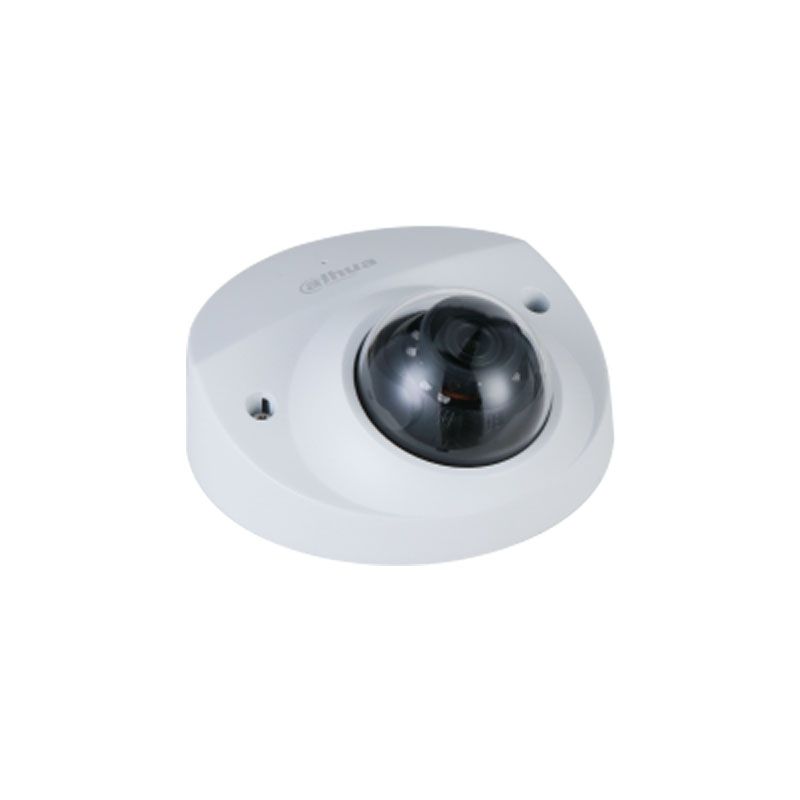

Quick Specs Figure 1 shows the appearance of IPC-HDBW3541F-AS-M.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7° 5MP Progressive Scan CMOS |
| Effective Pixels | 2592 x 1944 |
| RAM/ROM | 512 MB / 128 MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.005 Lux@F1.6 (Color), 0 Lux@F1.6 (IR on) |
| IR Distance | Up to 30m (98ft) |
| Day/Night | Auto(ICR)/Color/B/W |
| Lens Type | Fixed |
| Focal Length | 2.8mm, 3.6mm, 6mm |
| Max Aperture | F1.6 |
| Angle of View | 2.8mm: 106°, 3.6mm: 87°, 6mm: 53° |
| Mount Type | M12 |
| Video Compression | H.265; H.264; H.264B; H.264H; MJPEG |
| Resolution | 5MP (2592 x 1944); 4MP (2688 x 1520); 3MP (2048 x 1536); 1080P (1920 x 1080); 1.3MP (1280 x 960); 720P (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240) |
| Frame Rate | Main Stream: 5MP (1 ~ 20fps), Sub Stream: D1 (1 ~ 20fps) |
| Bit Rate | H.265: 3Kbps?C 6144Kbps, H.264: 3Kbps?C 10240Kbps |
| Audio Compression | G.711a; G.711Mu; G.726; AAC |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | <12.5W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
