IPC-HDPW5541G-ZE
IPC-HDPW5541G-ZE $0.00

IPC-HDBW3541R-ZAS

Original price was: $143.00.Current price is: $135.85.

Model: IPC-HDBW3541R-ZAS – Dahua 5MP IP Cameras
Details: Dahua 5MP Lite AI IR Vari-focal Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-HDBW3541R-ZAS Categories: , ,
Description

IPC-HDBW3541R-ZAS Overview

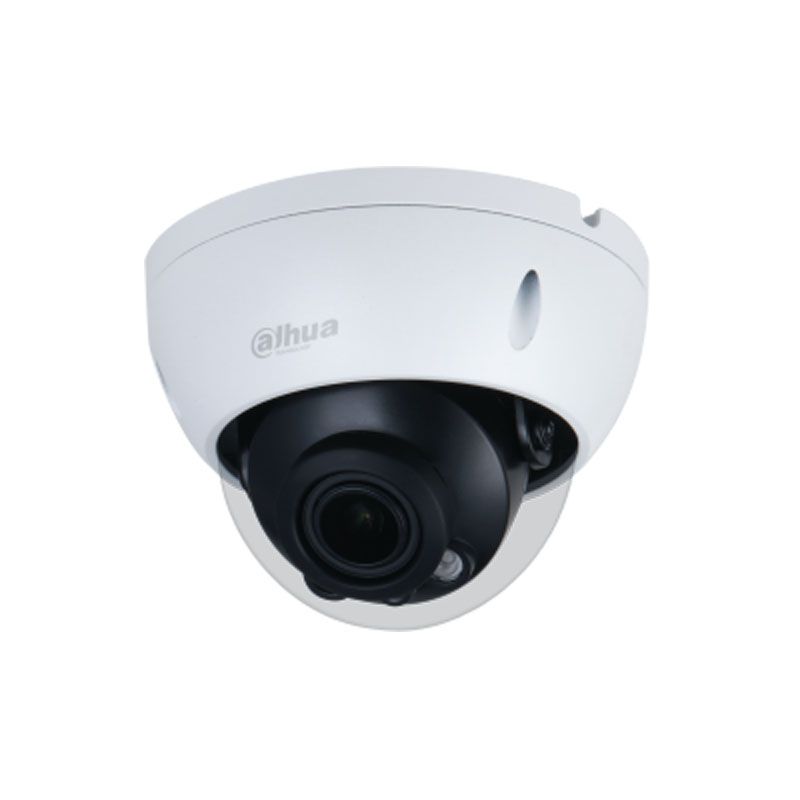

Quick Specs Figure 1 shows the appearance of IPC-HDBW3541R-ZAS.

Table 1 shows the Quick Specs.

Image Sensor 1/2.7”5Megapixel progressive CMOS
Effective Pixels 2592 (H) ×1944 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 Lux@F1.5
IR Distance 40 m (131.23 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 2 (IR LEDs)
Pan/Tilt/Rotation Range Horizontal: 0°–355°; vertical: 0°–75°; rotation: 0°–355°
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View Horizontal: 99°–26°Vertical: 72° –20°Diagonal: 133° –33°
Iris Type Fixed aperture
Close Focus Distance 0.8 m (2.6 ft)
DORI Distance Lens
W 64.0 m(210.0 ft)
T 222.0 m (728.3 ft)
Perimeter Protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream (2592 × 1944@1–20 fps)(2688 × 1520@1–25/30 fps)sub stream (704 × 576@1–25/30 fps)third stream (1280 × 720@1–25/30 fps)
Stream Capability 3 streams
Resolution 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 KbpsH.265: 3 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Mirror Yes
Privacy Masking 4 areas
Audio Compression G.711a; G.711Mu; G726; AAC
Network RJ-45 (10/100 Base-T)
Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene Self-adaptation Yes
User/Host 20 (Total bandwidth: 64 M)
Edge Storage FTP; SFTP; Micro SD Card (support max. 256 G);Cloud; NAS
Browser IE: IE8, IE9, IE11ChromeFirefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certifications CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Audio Input 1-channel (RCA port)
Audio Output 1-channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power Supply 12V DC/PoE (802.3af)
Power Consumption <8.5W
Operating Conditions -30°C to +60°C (-22°F to +140°F)/less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67; IK10
Casing Metal
Dimensions Φ122 mm × 88.9 mm (Φ4.8″ × 3.5″)
Net Weight 492 g (1.1 lb)
Gross Weight 663 g (1.5 lb)
