IPC-HDBW4231F-M
Model: IPC-HDBW4231F-M – Dahua 2MP IP Cameras
Details: 2MP IR Mini Dome Network camera; 2.8mm fixed lens (3.6mm, 6mm optional)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDBW4231F-M Overview

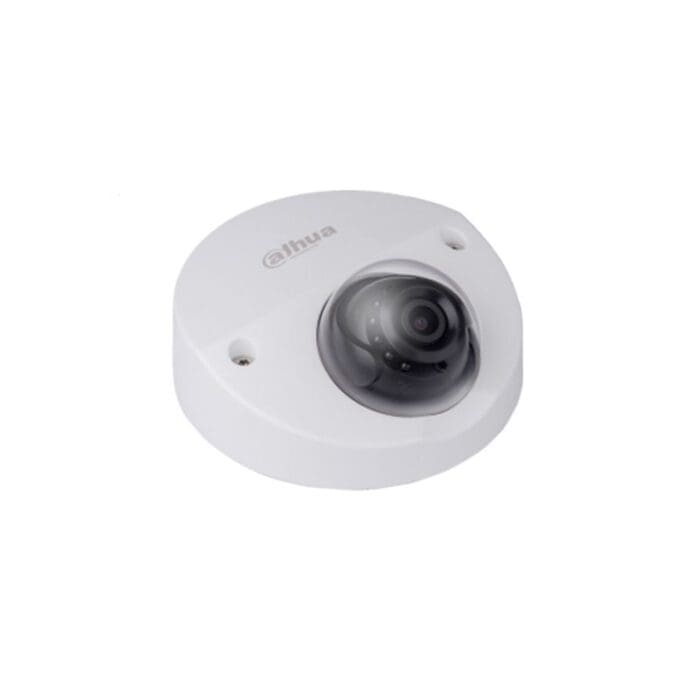

Quick Specs Figure 1 shows the appearance of IPC-HDBW4231F-M.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | IPC-HDBW4231F-M |
| Camera Type | 2MP IR Mini Dome Network Camera |
| Image Sensor | 1/2.8�� 2 Megapixel progressive CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.01Lux/F2.0 (Color, 1/3s, 30IRE)0Lux/F2.0 (IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Up to 30m (98ft) |
| Lens | 2.8mm fixed lens (3.6mm, 6mm optional) |
| Lens Mount | M12 |
| Angle of View | 104��(2.8mm), 87��(3.6mm), 56��(6mm) |
| Compression | H.265/H.264H/MJPEG |
| Frame Rate | Main Stream: 1080P (1~25/30fps)Sub Stream: D1(1~25/30fps) |
| Bit Rate | H.264: 24K ~ 8192Kbps, H.265: 14K ~ 8192Kbps |
| DORI Distance | Detect: 35m(115ft), Observe: 14m(46ft), Recognize: 7m(23ft), Identify: 4m(13ft) |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Max 4.2W |
| Operating Conditions | -30��C ~ +60��C (-22��F ~ +140��F), Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
