IPC-HDBW8232E-Z-SL
Model: IPC-HDBW8232E-Z-SL – Dahua 2MP IP Cameras
Details: 2MP Starlight Anti-Corrosion IR Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDBW8232E-Z-SL Overview

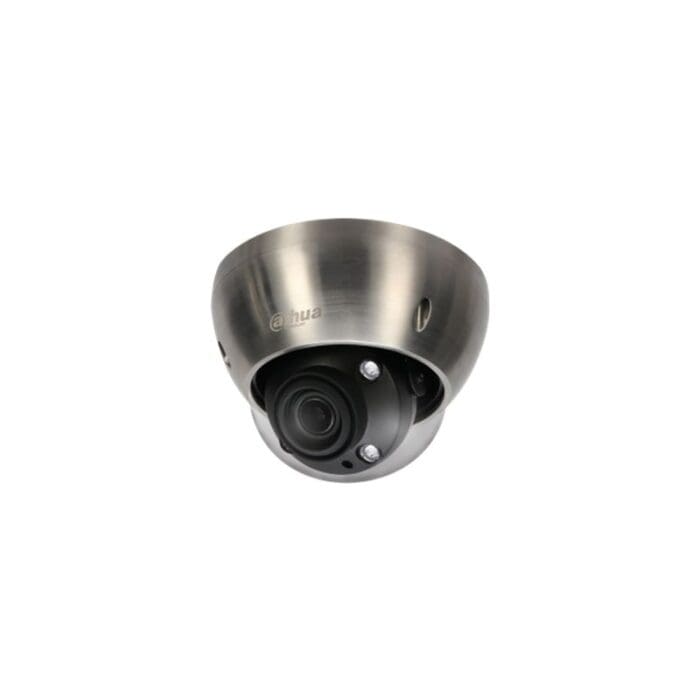

Quick Specs Figure 1 shows the appearance of IPC-HDBW8232E-Z-SL.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.8″Â 2Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| RAM/ROM | 1024MB/128MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.002Lux/F1.53 (Color,1/3s,30IRE)0.01Lux/F1.53 (Color,1/30s,30IRE)0Lux/F1.53(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 50m(164ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 3 |
| Lens Type | Motorized /Auto Iris(HALL) |
| Mount Type | Board-in |
| Focal Length | 4.1~16.4mm motorized |
| Max.Aperture | F1.53 |
| Angle of View | H: 92Ëš~32ËšV:53Ëš~18Ëš |
| Optical Zoom | 4x |
| Focus Control | Motorized |
| Close Focus Distance | 1m(3.28ft) |
| DORI Distance | Lens |
| W | 57m(187ft) |
| T | 137m(449ft) |
| Pan/Tilt/Rotation Range | Pan:0Ëš~355Ëš; Tilt:0Ëš~65Ëš; Rotation:0Ëš~355Ëš |
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection, People Counting, Heat Map |
| Compression | G.711a/G.711Mu/AAC/ G.726 |
| Streaming Capability | 3Â Streams |
| Resolution | 1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720)/ D1(704×576/704×480) /VGA(640×480)/ CIF(352×288/342×240) |
| Frame Rate | Main Stream: 1080P(1~50/60fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24~ 10240KbpsH.265: 14~ 6144Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB)/ SSA |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization(EIS) | Support |
| Smart IR | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (100/1000Base-T) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NASLocal PC for instant recordingMirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, Easy4ip |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | 1 Port(For adjustment only) |
| Audio Interface | 1/1 channel In/Out |
| RS485 | N/A |
| Alarm | 1 channel In: 5mA 5VDC1 channel Out: 1A 30VDC / 0.5A 50VAC |
| Power Supply | DC12V,AC24V, PoE+ (802.3at)(Class 4) |
| Power Consumption | <18W |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Strorage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Corrosion Protection | Meet the criteria of NEMA 4X |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | Φ162.5mmx 118.1mm(Φ6.4″x4.65″) |
