IPC-HDPW5241G-Z

$0.00

Model: IPC-HDPW5241G-Z – Dahua 2MP IP Cameras
Details: Dahua 2MP Pro AI IR Vari-focal Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Description

IPC-HDPW5241G-Z Overview

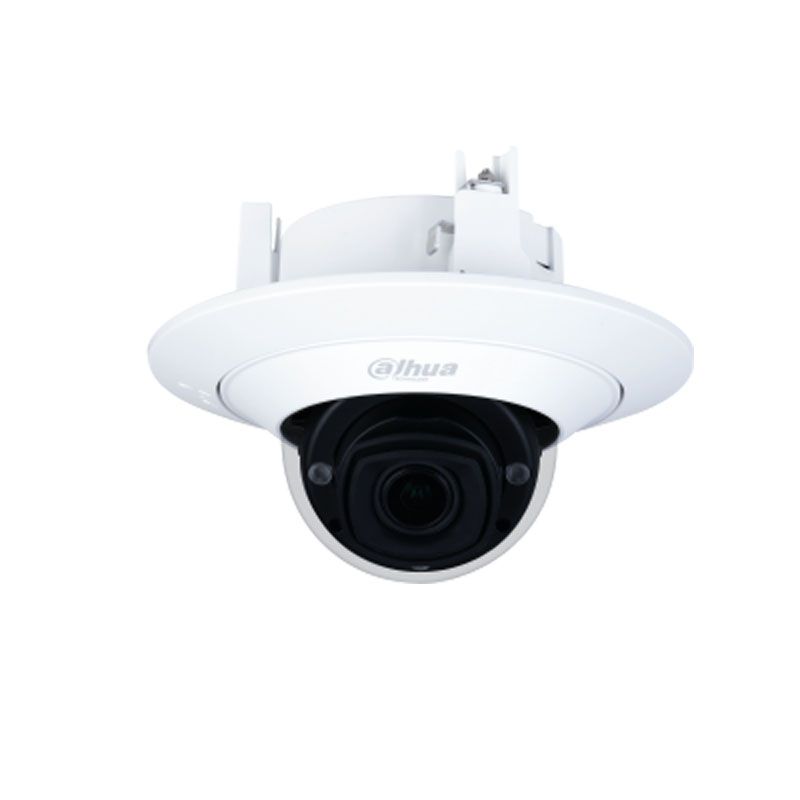

Quick Specs Figure 1 shows the appearance of IPC-HDPW5241G-Z.

Table 1 shows the Quick Specs.

Image Sensor 1/2.8” 2Megapixel progressive scan STARVIS? CMOS
Effective Pixels 1920 (H) × 1080 (V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Minimum Illumination 0.002 Lux@F1.5
IR Distance Distance up to 40 m (131 ft)
IR On/Off Control Auto/Manual
IR LEDs 3
Lens Type Motorized vari-focal
Mount Type Board-in
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Angle of View H: 109°–30°, V: 57°–17°
Aperture Type Auto
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens
W 44m(144ft)
T 146m(479ft)
Pan/Tilt/Rotation Range Pan: 0?–355?; Tilt: 0?–75?; Rotation: 0?–355?
Face Detection Support face image capture
Face Attributes Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard
Perimeter Protection Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering
People Counting Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned/Missing
Heat Map Yes
Compression G.711a,G.711Mu,G.726,AAC,G.723
Smart Codec Yes
Streaming Capability 3 Streams
Resolution 1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate Main Stream: 1080P (1 fps–25/30 fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32 Kbps–8192 KbpsH.265: 19 Kbps–7424 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Mode BLC/HLC/WDR (120 dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off/On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Stabilization (EIS) Yes
Smart IR Yes
Defog Yes
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off/On (4 Area, Rectangle)
Ethernet RJ-45 (10/100 Base-T)
Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability ONVIF(Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
Streaming Method Unicast/Multicast
Max. User Access 20 Users
Edge Storage NAS;FTP;SFTPMicro SD card 256 GB
Web Viewer IE (versions newer than IE8), Chrome,Firefox, Safari (versions newer than Safari 12)
Management Software Smart PSS, DSS, DMSS
Smart Phone iOS, Android
Certifications CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart B
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 1 channel In: 5mA 5V DC1 channel Out: 300mA 12V DC
Power Supply DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption <10.6W
Operating Conditions -30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Storage Conditions -30° C to +60° C (-22° F to +140° F)
Casing plastic
Dimensions Φ180.5 mm × 131.4 mm (7.11” × 5.17”)
Net Weight 0.51 kg (1.12 lb)
Gross Weight 0.73 kg (1.61 lb)
