IPC-HDW1320S
Model: IPC-HDW1320S – Dahua 3MP IP Cameras
Details: 3MP IR Eyeball Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDW1320S Overview

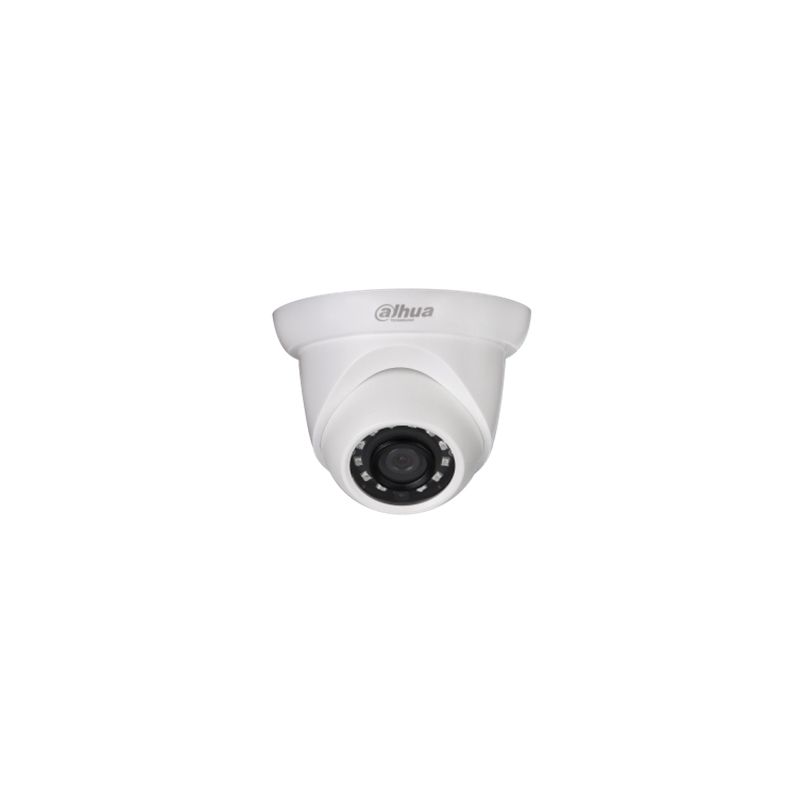

Quick Specs Figure 1 shows the appearance of IPC-HDW1320S.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3″Â 3Megapixel progresive CMOS |
| Effective Pixels | 2304(H) x1536(V) |
| RAM/ROM | 256MB/16MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 30m(98ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 18 |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Max Aperture | F2.0 |
| Angle of View | H:77°,V:40.5° |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| Pan/Tilt Range | Pan:0°~360°;Tilt:0°~90°;Rotation:0°~360° |
| Compression | N/A |
| Streaming Capability | 2 Streams |
| Resolution | 3M(2048×1536(2304×1296)/1080P(1920×1080)/Â 720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | 3M(1 ~ 20fps)/2M (1 ~ 25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H264:24K ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image | Support |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP; |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NAS(Network Attached Storage),Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS,Easy4ip |
| Smart Phone | iPhone, iPad, Android Phone |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC12V PoE (802.3af)(Class 0) |
| Power Consumption | <6.4W |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Strorage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Casing | Metal+Plastic |
| Dimensions | Φ108mmx84.9mm(4.25”x3.15”) |
