-5%
IPC-HDW5541H-AS-PV
Model: IPC-HDW5541H-AS-PV – Dahua 5MP IP Cameras
Details: 5MP WDR IR Eyeball AI Network Camera; 2.8 mm fixed lens (3.6 mm, 6 mm optional); 1/1 Alarm in/out, 1/1 audio in/out (Built-in MIC, Built-in Speaker)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDW5541H-AS-PV Overview

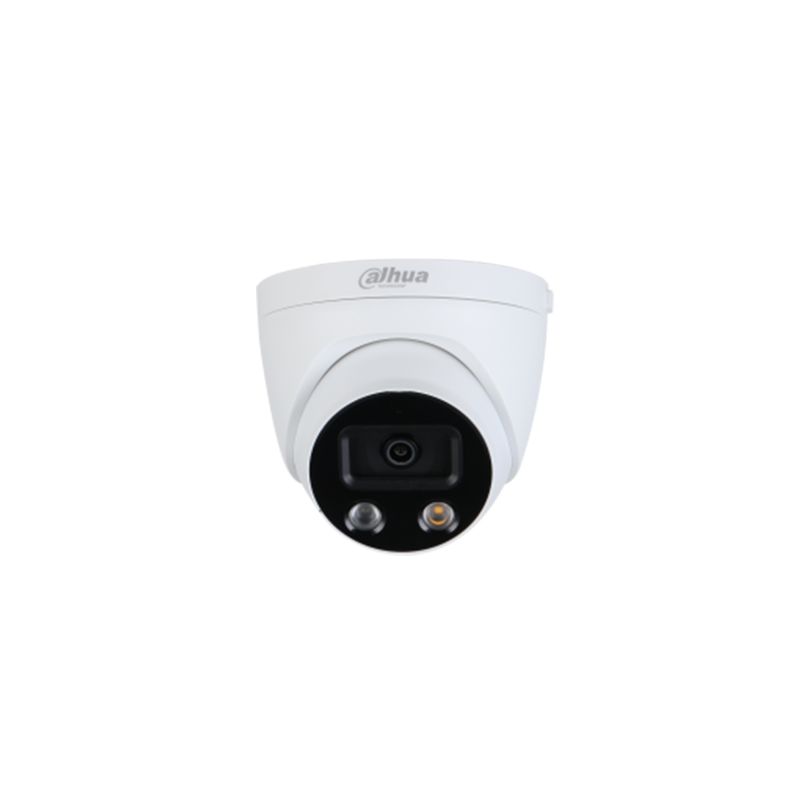

Quick Specs Figure 1 shows the appearance of IPC-HDW5541H-AS-PV.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | IPC-HDW5541H-AS-PV |
| Image Sensor | 5MP Progressive CMOS |
| Effective Pixels | 2592 x 1944 |
| Minimum Illumination | 0.005 Lux @ F1.6 |
| WDR | 120 dB |
| Lens Type | Fixed |
| Lens Mount | M12 |
| Focal Length | 2.8 mm (3.6 mm, 6 mm optional) |
| Field of View | Horizontal: 97??, Vertical: 71??, Diagonal: 128?? (2.8 mm) |
| IR Distance | Up to 50 meters |
| Day/Night | Auto (ICR) / Color / B/W |
| Audio In/Out | 1/1 (Built-in MIC, Built-in Speaker) |
| Alarm In/Out | 1/1 |
| Video Compression | H.265, H.264, H.264B, H.264H, MJPEG |
| Resolution | 5MP (2592 x 1944) |
| Frame Rate | 25/30 fps for 5MP |
| Bit Rate | Main Stream: 24 kbps?C8192 kbps, Sub Stream: 24 kbps?C6144 kbps |
| Ethernet | RJ-45 (10/100 Base-T) |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 8.9W |
| Operating Temperature | -30??C to +60??C (-22??F to +140??F) |
