-5%
IPC-HDW5541TM-AS
Model: IPC-HDW5541TM-AS – Dahua 5MP IP Cameras
Details: Dahua 5MP WDR IR Eyeball AI Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDW5541TM-AS Overview

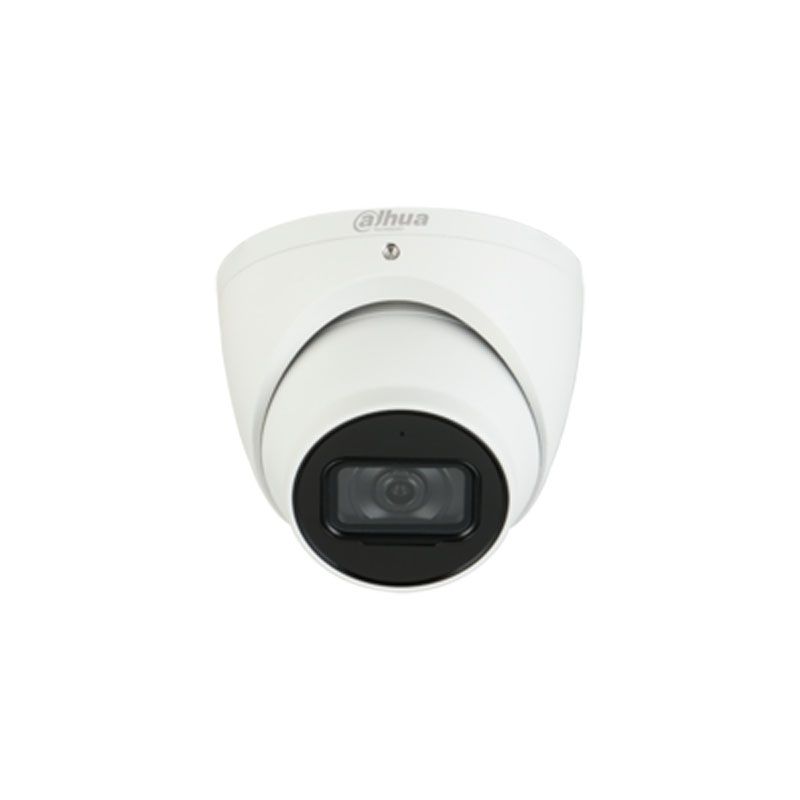

Quick Specs Figure 1 shows the appearance of IPC-HDW5541TM-AS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7?? 5Megapixel progressive scan CMOS |
| Effective Pixels | 2592 (H) ?? 1944 (V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s?C1/100000 s |
| Minimum Illumination | 0.005 Lux@F1.6 |
| IR Distance | Distance up to 50 m (164 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 2 |
| Lens Type | Fixed-focal |
| Mount Type | Board-in |
| Focal Length | 2.8 mm, 3.6 mm, 6.0 mm |
| Max. Aperture | F1.6 |
| Angle of View | H: 102??, V: 71??/H: 84??, V: 58??/H: 51??, V: 37?? |
| Aperture Type | Fixed |
| Close Focus Distance | 0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft) |
| DORI Distance | Lens |
| 2.8mm | 56m(184ft) |
| 3.6mm | 80m(262ft) |
| 6.0mm | 120m(394ft) |
| Pan/Tilt/Rotation Range | Pan: 0??C360?; Tilt: 0??C78?; Rotation: 0??C360? |
| Face Detection | Support face image capture |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering |
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
| General Intelligence | Object Abandoned/Missing |
| Heat Map | Yes |
| Compression | G.711a,G.711Mu,G.726,AAC,G.723 |
| Smart Codec | Yes |
| Streaming Capability | 3 Streams |
| Resolution | 2592 ?? 1944/2688 ?? 1520/2560 ?? 1440/2304 ?? 1296/1080P (1920 ?? 1080)/1.3M (1280 ?? 960)/720P (1280 ?? 720)/D1 (704 ?? 576/704 ?? 480)/VGA (640 ?? 480)/CIF (352 ?? 288/352 ?? 240) |
| Frame Rate | Main Stream: 2592 ?? 1944 (1 fps?C20 fps)2560 ?? 1440 (1 fps?C25/30 fps)1920 ?? 1080 (1 fps?C50/60 fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps?C8192 KbpsH.265: 19 Kbps?C8192 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC Mode | BLC/HLC/WDR (120 dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off/On (4 Zone, Rectangle) |
| Region of Interest | Off/On (4 Zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Smart IR | Yes |
| Defog | Yes |
| Flip | 0??/90??/180??/270?? |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability | ONVIF(Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 20 Users |
| Edge Storage | NAS;FTP;SFTPMicro SD card 256 GB |
| Web Viewer | IE (versions newer than IE8), Chrome,Firefox, Safari (versions newer than Safari 12) |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | iOS, Android |
| Certifications | CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Audio Interface | Built-in MIC |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC 12V (??30%), PoE (802.3af) (Class 0) |
| Power Consumption | <7.2W |
| Operating Conditions | -30?? C to +60?? C (-22?? F to +140?? F)/Less than 95% RH |
| Storage Conditions | -30?? C to +60?? C (-22?? F to +140?? F) |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | ??106 mm ?? 93.6 mm (4.17?? ?? 3.69??) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
