IPC-HFW1431S
Model: IPC-HFW1431S – Dahua 4MP IP Cameras
Details: 4MP WDR IR Mini-Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW1431S Overview

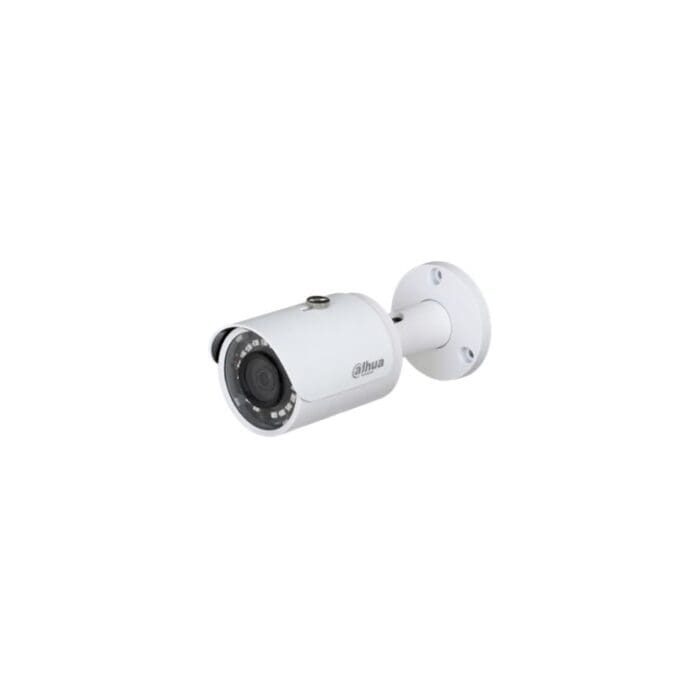

Quick Specs Figure 1 shows the appearance of IPC-HFW1431S.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3″Â 4Megapixel progresive CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| RAM/ROM | 512MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE)0.3Lux/F2.0( Color,1/30s,30IRE)0Lux/F2.0(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 30m(98ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 18 |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm (3.6 mm optional) |
| Max. Aperture | F2.0/F2.0 |
| Angle of View | H:104°/87°, V:57°/48° |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| DORIDistance | Lens |
| 2.8 mm | 63m(207ft) |
| 3.6 mm | 80m(262ft) |
| Pan/Tilt/Rotation Range | Pan:0°~360°;Tilt:0°~90°;Rotation:0°~360° |
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly |
| IVS | Tripwire, Intrusion |
| Compression | N/A |
| Smart Codec | Support H.265+/H.264+ |
| Streaming Capability | 2Â Streams |
| Resolution | 4M(2688×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream: 4M(1 ~ 20fps)/3M (1 ~ 25/30fps)Sub Stream: D1(1 ~ 25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 12K ~ 8448KbpsH.264: 32K ~ 10240Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization(EIS) | N/A |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NASLocal PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC12V, PoE(IEEE 802.3af)(Class 0) |
| Power Consumption | < 5.5W |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Strorage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Casing | Metal+Plastic |
| Dimensions | Φ70mmx 164.7mm(2.76”x6.49”) |
