IPC-HFW2431T-ZS-S2
Model: IPC-HFW2431T-ZS-S2 – Dahua 4MP IP Cameras
Details: 4MP WDR IR Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW2431T-ZS-S2 Overview

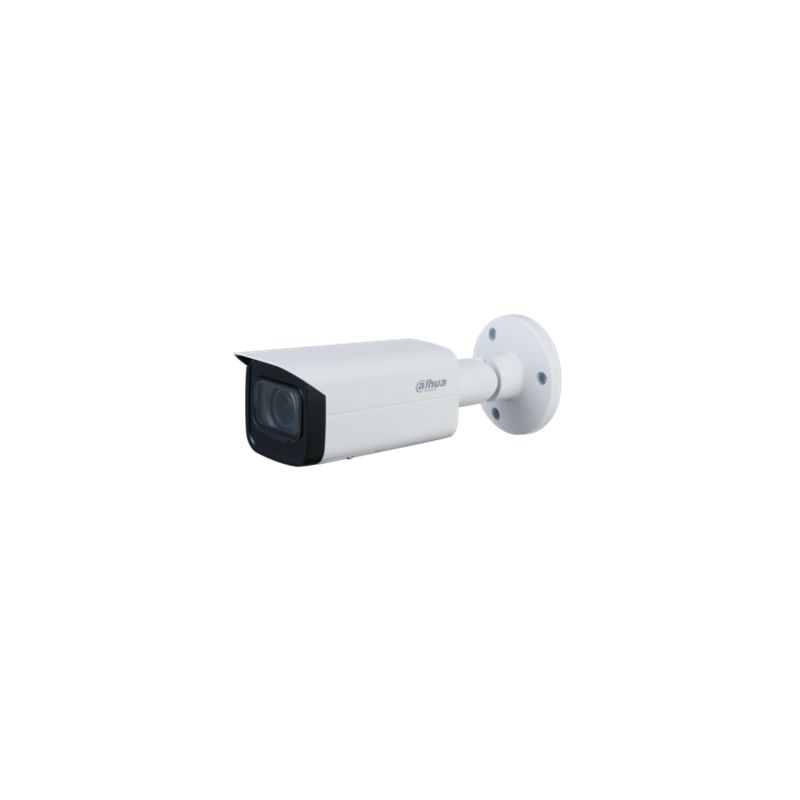

Quick Specs Figure 1 shows the appearance of IPC-HFW2431T-ZS-S2.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3” CMOS |
| Effective Pixels | 2688 (H) x 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Minimum Illumination | 0.01 Lux@F1.6 |
| IR Distance | 50 m (164.04 ft) (IR) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs Number | 4 (IR LED) |
| Pan/Tilt/Rotation Range | Horizonal: 0°–360°Vertical: 0°–90°Rotation: 0°–360° |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max.Aperture | F1.6 |
| Field of View | Horizonal: 104°–27°Vertical: 55°–15°Diagonal: 124°–31° |
| Optical Zoom | 5 times |
| Iris Type | Fixed |
| Close Focus Distance | 0.8m–0.8m (2.62 ft–2.62 ft) |
| DORI Distance | Lens |
| W | 64 m (209.97 ft) |
| T | 220 m (721.78 ft) |
| General IVS Analytics | Intrusion; tripwire |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Smart Codec | H.264: YesH.265: Yes |
| Video Frame Rate | 50HzMain stream (2560 x 1440@25 fps); sub stream (704 x 576@25 fps)Main stream (2688 x 1520@20 fps); sub stream (704 x 576@20 fps)60HzMain stream (2560 x 1440@30 fps); sub stream (704 x 480@30 fps)Main stream (2688 x 1520@20 fps); sub stream (704 x 480@20 fps) |
| Stream Capability | Main stream; sub stream |
| Resolution | 2688 x 1520 (2688 x 1520); 2560 x 1440 (2560 x 1440);2304 x 1296 (2304 x 1296); 1080p (1920 x 1080); 1.3M(1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480);  VGA (640 x 480); CIF (352 x 288/352 x 240) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps |
| Day/Night | ICR switch |
| BLC | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Disable/Enable (4 areas, rectangle) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Digital Zoom | 16x |
| Image Rotation | 0°/90°/180°/270°(Supports 90°/270°with 2688×1520 resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network | RJ-45 (10/100 Base-T) |
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;Â DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;Â RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP |
| Interoperability | ONVIF (Profile S/Profile G); CGI; Milestone; Genetec |
| User/Host | 20 |
| Edge Storage | Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS |
| Browser | IEGoogleFirefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certifications | CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL: UL60950-1 CAN |
| Power Supply | 12V DC/POE |
| Power Consumption | Basic power consumption: 1.9W (12V DC), 2.8W (POE)Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 8W (12V DC), 9.6W (POE) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | Φ244.1 mmx 90.4 mm (Φ9.61″x 3.26″) |
