IPC-HFW2531T-ZAS-S2
Model: IPC-HFW2531T-ZAS-S2 – Dahua 5MP IP Cameras
Details: Dahua 5MP Lite IR Vari-focal Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW2531T-ZAS-S2 Overview

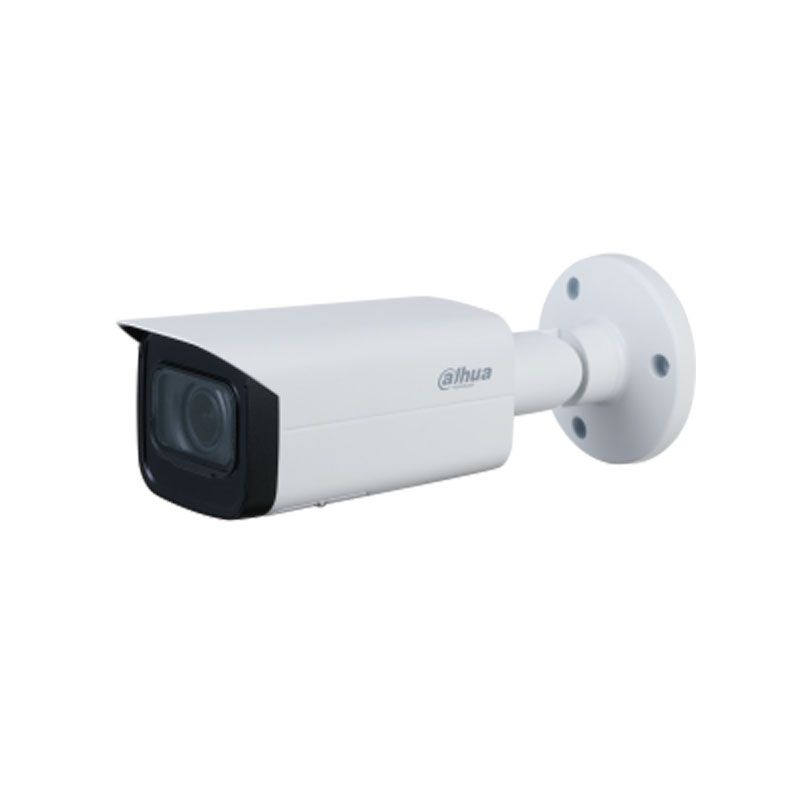

Quick Specs Figure 1 shows the appearance of IPC-HFW2531T-ZAS-S2.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
| Effective Pixels | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.01 Lux@F1.5 |
| IR Distance | 60 m (196.8 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 4 |
| Pan/Tilt/Rotation Range | Horizonal: 0°–360°Vertical: 0°–90°Rotation: 0°–360° |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizonal: 100°–26°Vertical: 72°–20°Diagonal: 133°–33° |
| Close Focus Distance | 0.8m–0.8m (2.62 ft–2.62 ft) |
| DORI Distance | Lens |
| W | 64 m(209.97 ft) |
| T | 220 m(721.78 ft) |
| General IVS Analytics | Tripwire; intrusion |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main stream:2592 × 1944 (1 fps-20 fps)2688 × 1520 (1 fps-25/30 fps)Sub stream:704 × 576 (1 fps-25 fps)704 × 480 (1 fps-30 fps) |
| Stream Capability | 2 streams |
| Resolution | 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32Kbps ~ 8192KbpsH.265: 12Kbps ~ 8192Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio Compression | G.711a; G.711Mu; G.726; AAC |
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability | ONVIF(Profile S/Profile G); CGI; P2P; Milestone; Genetec |
| User/Host | 20 |
| Edge Storage | Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IEChromeFirefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certifications | CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Audio Input | 1 channel (RAC port) |
| Audio Output | 1 channel (RAC port) |
| Alarm Input | 1 channel In: 5mA 5VDC |
| Alarm Output | 1 channel Out: 300mA 12VDC |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 10.0W |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than ≤ 95% |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 244.1 mm × Φ90.4 mm (9.61″ × Φ3.26″) |
| Net Weight | 0.9 kg (2.0 lb) |
| Gross Weight | 1.15 kg (2.6 lb) |
