IPC-HFW3449E-AS-LED
Model: IPC-HFW3449E-AS-LED – Dahua 4MP IP Cameras
Details: Dahua 4MP Lite AI Full-color Warm LED Fixed-focal Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW3449E-AS-LED Overview

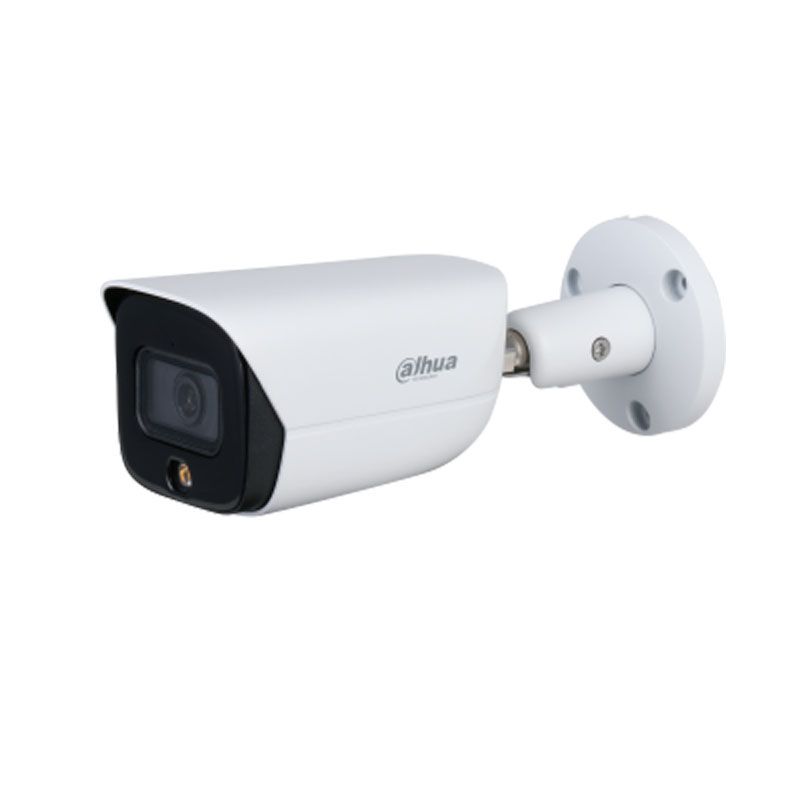

Quick Specs Figure 1 shows the appearance of IPC-HFW3449E-AS-LED.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7”4Megapixel progressive CMOS |
| Effective Pixels | 2688 (H) ×1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100, 000 s |
| Min. Illumination | 0.003 Lux @ F1.0 |
| LED Distance | 30 m (98.4 ft) |
| LED On/Off Control | Auto/Manual |
| LEDs Number | 1 (warm LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°Tilt: 0°–65°Rotation: 0°–355° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 3.6 mm: Horizontal 80° × vertical 43° × diagonal 95° |
| Iris Type | Fixed |
| Close Focus Distance | 3.6 mm: 2.4 m (7.9 ft) |
| DORI Distance | Lens |
| 3.6mm | 80.0 m(262.5 ft) |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG(sub stream) |
| Smart Codec | H.264: YesH.265: Yes |
| Video Frame Rate | Main stream (2688 × 1520 @ 1–25/30 fps)sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps)third stream (1280 × 720 @ 1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G726; AAC |
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
| Scene self-adaptation | Yes |
| User/Host | 20 (Total bandwidth: 64M.) |
| Edge Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8; IE9; IE11ChromeFirefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certifications | CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| Power Supply | 12V DC/PoE |
| Power Consumption | < 8.4W |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than≤95% |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 192.7 mm × 70.5 mm × 66.4 mm(632.2″ × 231.3″ × 217.8″) (L × W × H) |
| Net Weight | 590 g (1.3 lb) |
| Gross Weight | 780 g (1.7 lb) |
