IPC-HFW3541E-AS
Model: IPC-HFW3541E-AS – Dahua 5MP IP Cameras
Details: Dahua 5MP Lite AI IR Fixed focal Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW3541E-AS Overview

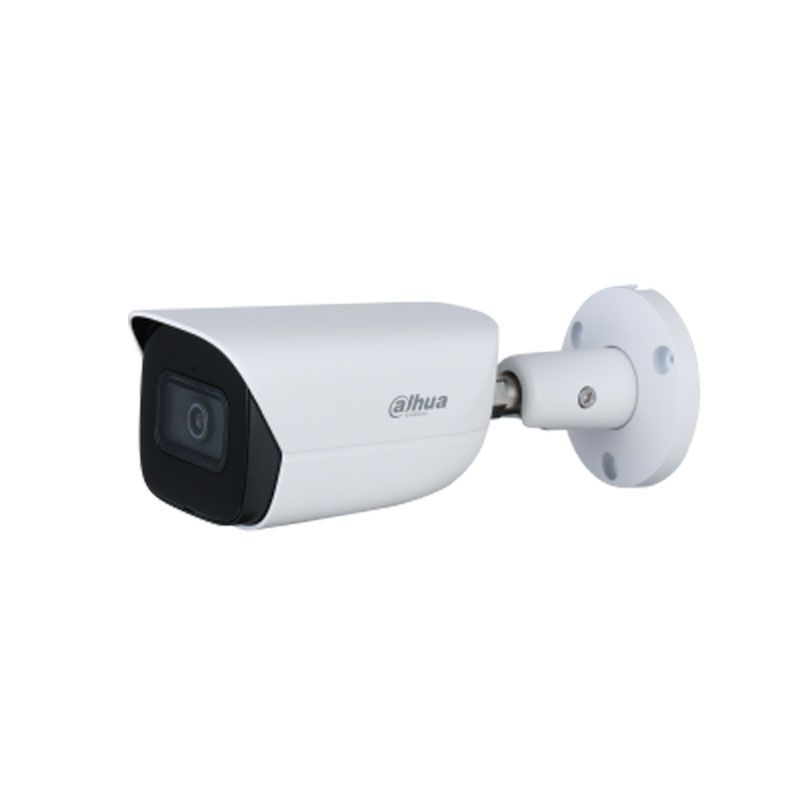

Quick Specs Figure 1 shows the appearance of IPC-HFW3541E-AS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7”5Megapixel progressive CMOS |
| Effective Pixels | 2592 (H) ×1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux@F1.6 |
| IR Distance | 50 m (164.0 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° |
| Lens Type | Fixed focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft)3.6 mm: 1.6 m (5.3 ft)6 mm: 3.2 m (10.5 ft) |
| DORI Distance | Lens |
| 2.8mm | 56.0 m(183.7 ft) |
| 3.6mm | 80.0 m(262.5 ft) |
| 6mm | 120.0 m (393.7 ft) |
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main stream (2592 × 1944@1–20 fps)(2688 × 1520@1–25/30 fps)sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps)third stream(1280 × 720@1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–8192 KbpsH.265: 3 Kbps–8192 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G726; AAC |
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
| Scene Self-adaptation | Yes |
| User/Host | 20 (Total bandwidth: 64 M) |
| Edge Storage | FTP; SFTP; Micro SD Card (support max. 256 G);Cloud; NAS |
| Browser | IE: IE8, IE9, IE11ChromeFirefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
| Certifications | CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Audio Input | 1-channel (RCA port) |
| Audio Output | 1-channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 5.4W |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than≤95% |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 192.7 mm × 70.5 mm × 66.4 mm(632.2″ × 231.3″ × 217.8″) (L × W × H) |
| Net Weight | 590 g (1.3lb) |
| Gross Weight | 780 g (1.7lb) |
