IPC-HFW5231E-ZE
Model: IPC-HFW5231E-ZE – Dahua 2MP IP Cameras
Details: 2MP WDR IR Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW5231E-ZE Overview

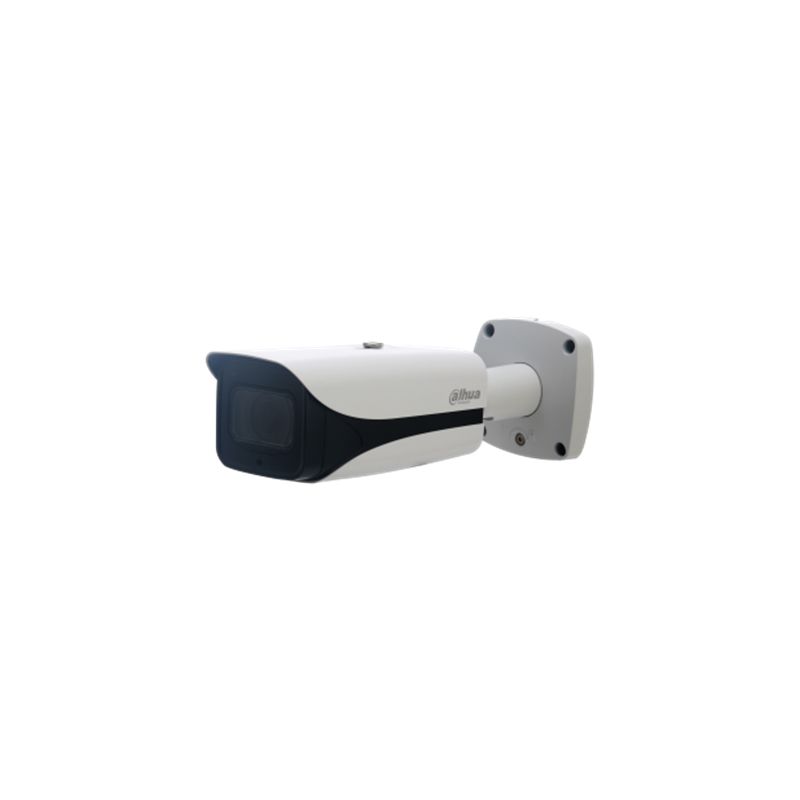

Quick Specs Figure 1 shows the appearance of IPC-HFW5231E-ZE.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″Â 2Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| RAM/ROM | 256MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Minimum Illumination | 0.006Lux/F1.4 ( Color,1/3s,30IRE)0.05Lux/F1.4 ( Color,1/30s,30IRE)0Lux/F1.4 (IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 50m (164ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 |
| Lens Type | Motorized/ Auto Iris(DC) |
| Mount Type | Board-in |
| Focal Length | 2.7mm~13.5mm |
| Max. Aperture | F1.4 |
| Angle of View | H: 101°~31°, V:54°~17° |
| Optical Zoom | 5x |
| Focus Control | Motorized |
| Close Focus Distance | 0.3m |
| DORIDistance | Lens |
| W | 44m(144ft) |
| T | 143m(469ft) |
| Pan/Tilt/Rotation Range | Pan:0°~360°; Tilt:0°~90°; Rotation:0°~360° |
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection |
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Streaming Capability | 3Â Streams |
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream: 1080P(1~50/60fps)Sub Stream: D1(1~50/60fps)Third Stream: 1080P(1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24~9472KbpsH.265: 14~5632Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization(EIS) | N/A |
| Smart IR | Support |
| Defog | N/A |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;Â FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP; RTCP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NASLocal PC for instant recordingMirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, Easy4ip |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | 1 Port(For adjustment only) |
| Audio Interface | 1/1 channel In/Out |
| RS485 | N/A |
| Alarm | 2 channel In: 5mA 5VDC1 channel Out: 300mA 12VDC |
| Power Supply | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption | <12.95W |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Strorage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | 273.2mm x 95.0mm x 95.0mm (10.76″x3.74″x3.74″) |
