IPC-HFW5541E-ZE
Model: IPC-HFW5541E-ZE – Dahua 5MP IP Cameras
Details: 5MP Pro AI Vari-focal IR Bullet Network Camera;2.7 mm–13.5 mm motorized lens
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW5541E-ZE Overview

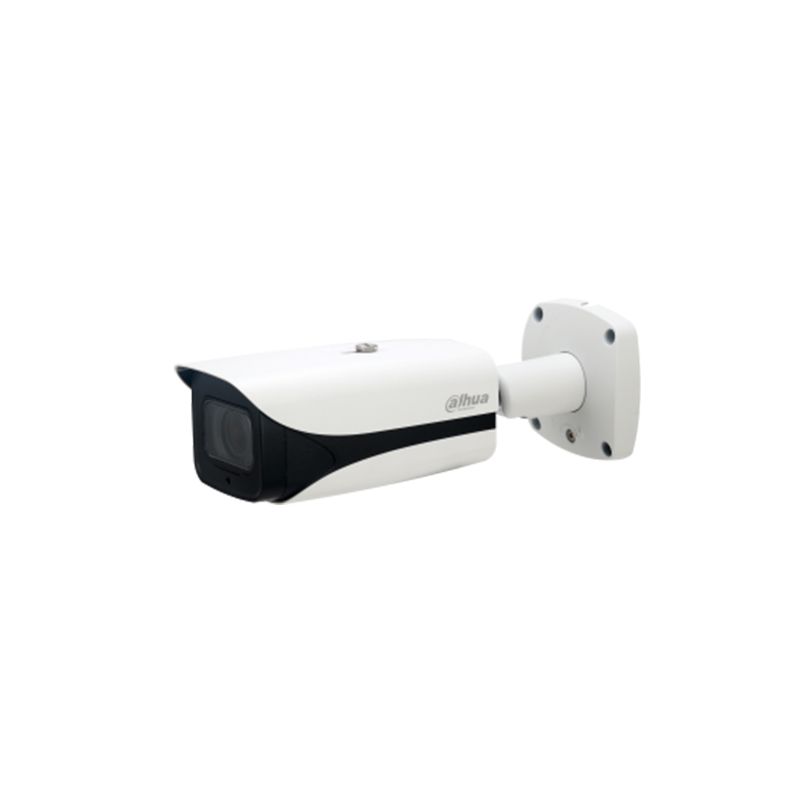

Quick Specs Figure 1 shows the appearance of IPC-HFW5541E-ZE.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7” 5Megapixel progressive scan CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| RAM/ROM | 1 GB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
| S/N Ratio | > 56 dB |
| Minimum Illumination | 0.005 Lux@F1.5 |
| Illumination Distance | Distance up to 50 m (164 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4(IR LED) |
| Lens Type | Motorized vari-focal |
| Mount Type | Board-in |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Angle of View | H: 100°–28°, V: 72°–21° (2592 × 1944)H: 104°–29°, V: 55°–16° (2688 × 1520) |
| Aperture Type | Auto |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance | Lens |
| W | 64m(210ft) |
| T | 212m(696ft) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚ |
| Face Detection | Face detection; track; optimization; snapshot; report high-quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
| Perimeter Protection | Tripwire; intrusion; fast-moving (the three functionssupport the classification and accurate detectionof vehicle and human); loitering detection; peoplegathering; parking detection |
| People Counting | Support the counting of entering number, leavenumber, and pass number, and displaying andoutputting yearly/monthly/daily reports.Support the counting of number in area, and 4 rulesconfiguration. Count number of people or stay timeand link alarm.Support queue management, and 4 rulesconfiguration. Count the number of people or stay timeand link alarm |
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
| General Intelligence | Object Abandoned/Missing |
| Heat Map | Yes |
| Compression | H.265,H.264,H.264B,H.264H,MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming Capability | 3 Streams |
| Resolution | 2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate | Main Stream: 2592 × 1944 (1 fps–20 fps)2560 × 1440 (1 fps–25/30 fps)1920 × 1080 (1 fps–50/60 fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps–8192 KbpsH.265: 19 Kbps–8192 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC Mode | BLC/HLC/WDR (120 dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off/On (4 Zone, Rectangle) |
| Region of Interest | Off/On (4 Zone) |
| Electronic Image Stabilization (EIS) | Yes |
| Smart Illumination | Yes |
| Defog | Yes |
| Flip | 0°/90°/180°/270° |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 Area, Rectangle) |
| Audio Compression | G.711a, G.711Mu, AAC, G.726, G.723 |
| Alarm Event | No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;voltage detection;People counting in area;Stay alarm;People No. exception detection;Queue Management |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| User/Host | 20 Users |
| Storage | NAS;FTP;SFTP;Dahua CloudMicro SD card 256 GB |
| Browser | IE (versions newer than IE8), Chrome,Firefox, Safari (versions newer than Safari 12) |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | iOS, Android |
| Certifications | CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Audio Interface | 1/1 channel In/Out |
| Alarm | 2 channel In: 5mA 5V DC1 channel Out: 300mA 12V DC |
| Power Supply | DC 12V (±30%), PoE (802.3af) |
| Power Consumption | <10.9W |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F) /Less than 95% RH |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67,IK10 |
| Casing | Metal, plastic |
| Dimensions | 273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”) |
