IPC-HFW81230E-ZE
Model: IPC-HFW81230E-ZE – Dahua 12MP IP Cameras
Details: 12MP IR Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW81230E-ZE Overview

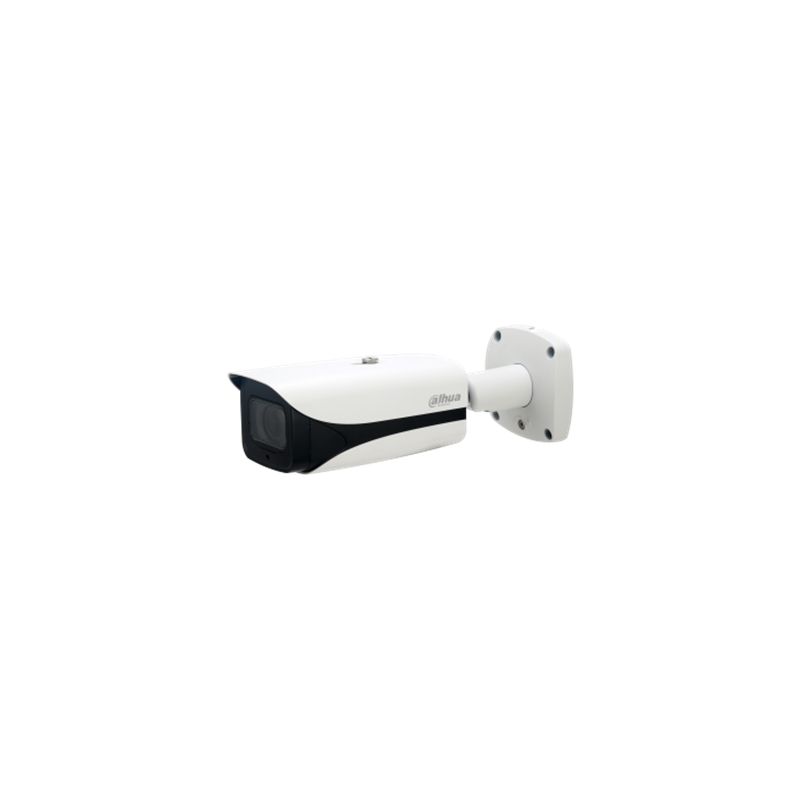

Quick Specs Figure 1 shows the appearance of IPC-HFW81230E-ZE.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.7″Â 12Megapixel progressive scan CMOS |
| Effective Pixels | 4000(H)x3000(V) |
| RAM/ROM | 1024MB/128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.01Lux/F1.53(Color,1/3s,30IRE)0.1Lux/F1.53(Color,1/30s,30IRE)0Lux/F1.53(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 50m(164ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 |
| Lens Type | Motorized /Auto Iris(HALL) |
| Mount Type | Board-in |
| Focal Length | 4.1~16.4mm motorized |
| Max.Aperture | F1.53 |
| Angle of View | H: 105°~35°, V:77°~26°(12MP,4:3)H: 101°~32°, V:57°~18°(8MP,16:9) |
| Optical Zoom | 4x |
| Focus Control | Motorized |
| Predictive Focus Algorithm(PFA) | Support |
| Close Focus Distance | 0.5m(1.64ft) |
| DORI Distance | Lens |
| W | 115m(377ft) |
| T | 227m(909ft) |
| Pan/Tilt/Rotation Range | Pan:0Ëš~360Ëš; Tilt:0Ëš~90Ëš; Rotation:0Ëš~360Ëš |
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly |
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection, People Counting, Heat Map |
| Compression | G.711a/G.711Mu/AAC/ G.726 |
| Smart Codec | Support H.265+/H.264+ |
| Streaming Capability | 3Â Streams |
| Resolution | 12M(4000×3000)/ 4K(3840×2160)/ 6M(3072×2048)/5M(2560×1920)/ 3M(2048×1536)/ 3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480) / VGA(640×480)/CIF(352×288/342×240) |
| Frame Rate | Main Stream: 12M(1~20fps)/ 4K(1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24~ 16384KbpsH.265: 14~ 9984Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR/ SSA |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization(EIS) | Support |
| Smart IR | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NASLocal PC for instant recordingMirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Video Interface | 1 Port(For adjustment only) |
| Audio Interface | 1/1 channel In/Out |
| RS485 | N/A |
| Alarm | 2 channel In: 5mA 5VDC1 channel Out: 1A 30VDC / 0.5A 50VAC |
| Power Supply | DC12V, PoE+(802.3at)(Class 4) |
| Power Consumption | <13W |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Strorage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | 273.2mm x 95.0mm x 95.0mm (10.76″x3.74″x3.74″) |
