-5%
IPC2203-VR
Model: Huawei eSpace IPC2203-VR 1.3 Megapixel Tube-shaped IPC2203-VR Sameras
Details: Huawei eSpace IPC2203-VR 1.3 Megapixel Infrared Tube-shaped IPC(30fps,f=2.8-12mm,FE,IR30-50m)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC2203-VR Overview

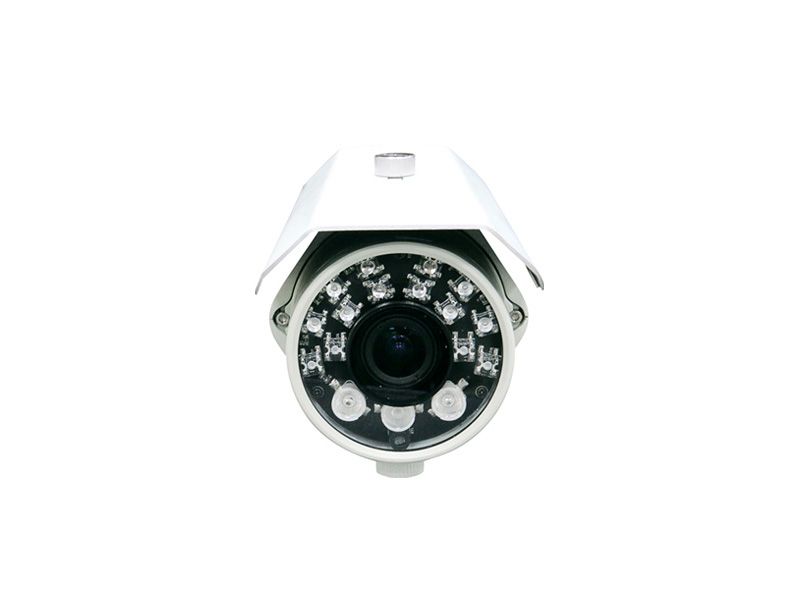

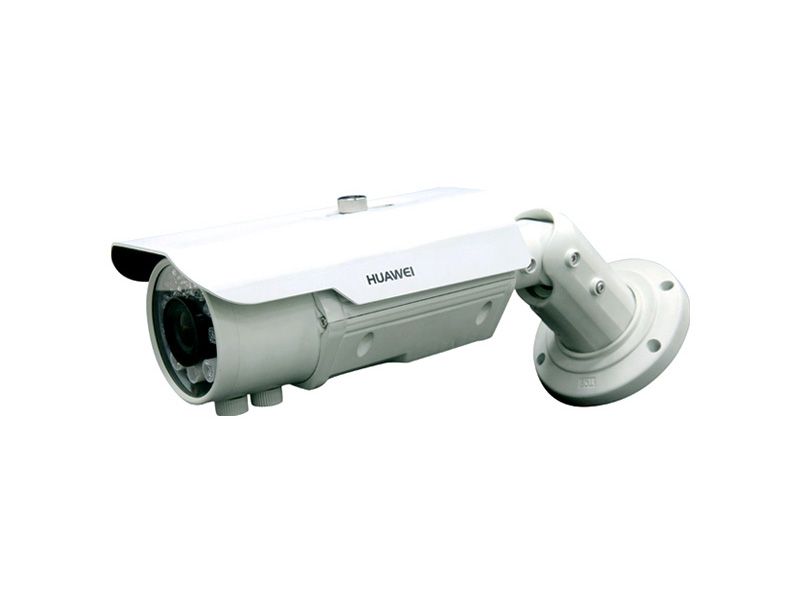

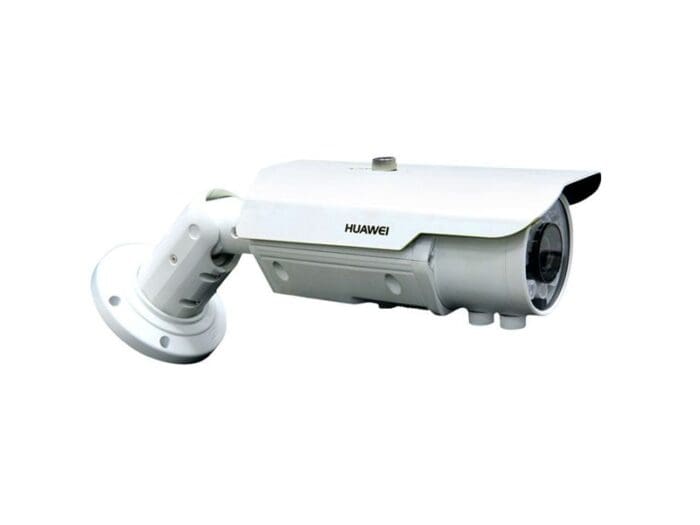

Quick Specs Figure 1 shows the appearance of IPC2203-VR.
Table 1 shows the Quick Specs.
| Image sensor | 1/3″ Progressive Scan CMOS |
| Effective pixels | 1280(H)×720(V) |
| Minimum Illumination | 0Lux(IR LED ON) |
| Day/Night mode | Automatic ICR |
| IR distance | 30 ~ 50meters |
| Electronic shutter speed | 1/5s ~Â 1/50,000s |
| Gain control | Supported |
| White balance | Supported |
| WDR | 70dB |
| Backlight compensation | Supported |
| Focal length | 2.8～12mm |
| Aperture | Auto Iris DC drive |
| Video encoding format | H.264 / MJPEG |
| Video resolution and frame rate | 50Hz:25fps (1280×720),25fps (640×360)60Hz:30fps (1280×720),30fps (640×360) |
| Video bit rate | Main-Stream:200Kbps~8MbpsSub-Stream:100Kbps~6Mbps |
| Multiple-Stream | triple Streams |
| Audio encoding format | G.711a/G.711u/raw_pcm |
| Audio bit rate | 64kbps |
| Communication interface | One RJ45 10/100 Base-T self-adaptive Ethernet interface and one RS-485 interface |
| Alarm interface | 1-channel alarm input/1-channel alarm Output |
| Audio interface | 1-channel audio input/1-channel audio Output |
| Analog port | RCA female socket |
| Motion detection | Eight motion detection areas |
| Privacy masks | Five privacy mask areas with adjustable sizes |
| Network Protocol | IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, SFTP, DDNS, PPPoE, SMTP, and NTP |
| Maximum number of concurrent users | Ten users access or two channels of media streams |
| Local storage | SDHC card（32G） |
| Security mode | User name and password authentication |
| Alarm linkage | Supported |
| Other functions | One-key reset, triple code streams, and heartbeat mechanism |
| SDK development | linux/windows C++ SDK |
| Power supply | DC12V ±10% 2A / PoE |
| Power consumption | , ≤11W(IR LED ON) |
| Operating temperature & humidity | –10°C to +60°C (when the infrared lamp is disabled), –40°C to +60°C (with a heater); < 90%(without condensation) |
| Protection level | IP66 |
| Net weight | 1.7kg |
| Dimensions (mm) | 110 ×110×377 |
