IPC2702-VF-VP
Model: Huawei eSpace IPC2702-VF-VP 1.3 Megapixel Camera
Details: Huawei eSpace IPC2702-VF-VP 1.3 Megapixel Day/Night Vandal-proof Dome IPC(30fps,f=2.8-12mm,FE)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC2702-VF-VP Overview

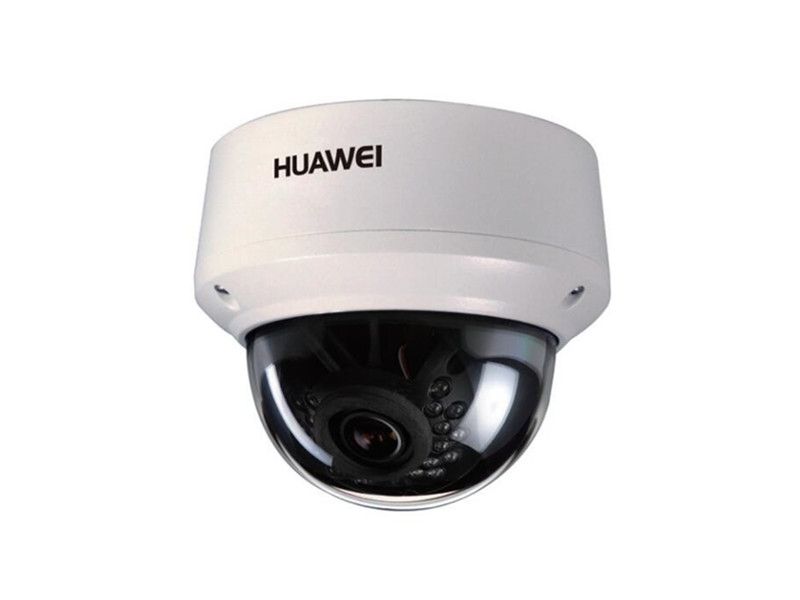

Quick Specs Figure 1 shows the appearance of IPC2702-VF-VP.
Table 1 shows the Quick Specs.
| Image sensor | 1/3″ Progressive Scan CMOS |
| Effective pixels | 1280(H)×720(V) |
| Minimum Illumination | Multicolor: 0.2Lux/(F1.2, AGC ON)B/W: 0.01Lux/(F1.2, AGC ON) |
| Day/Night mode | Automatic ICR |
| Electronic shutter speed | 1/5s ～ 1/50,000s |
| Gain control | Supported |
| White balance | Supported |
| WDR | 70dB |
| Backlight compensation | Supported |
| Focal length | 2.8 ~ 12mm |
| Aperture | Auto Iris DC drive |
| Video encoding format | H.264 / MJPEG |
| Video resolution and frame rate | 50Hz: 25fps (1280×720), 25fps (640×360)60Hz: 30fps (1280×720), 30fps (640×360) |
| Video bit rate | Main-Stream: 500Kbps~8MbpsSub-Stream: 100Kbps~6Mbps |
| Multiple-Stream | triple Streams |
| Audio encoding format | G.711a/G.711u/raw_pcm |
| Audio bit rateCommunication interface | 64kbpsOne RJ45 10/100 Base-T self-adaptive Ethernet interface and one RS-485 interface |
| Alarm interfaceAudio interface | 1-channel alarm input/1-channel alarm Output1-channel audio input/1-channel audio Output |
| Analog port | BNC connector |
| Motion detection | Eight motion detection areas |
| Privacy masks | Five privacy mask areas with adjustable sizes |
| Network protocolMaximum number of concurrent users | IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, SFTP,DDNS, PPPoE, SMTP, and NTPTen users access or two channels of media streams |
| Security mode | User name and password authentication |
| Alarm linkageOther functions | SupportedOne-key reset, triple code streams, and heartbeat mechanism, 3-axis adjustment |
| Power supply | DC12V±10% 1A/ PoE 802.3af |
| Power consumption | ≤5W |
| Operating temperature & humidity | -10ºC ~ 50ºC< 90%(without condensation) |
| Net weight | 0.9kg |
| Product Appearances (mm) | Φ130×111.5 |
