IPC5602

Original price was: $289.00.Current price is: $274.55.

Model: Huawei eSpace IPC5602 2.0 Megapixel Camera
Details: Huawei eSpace IPC5602 2.0 Megapixel Day/Night Box IPC(30fps,FE)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC5602 Categories: , ,
Description

IPC5602 Overview

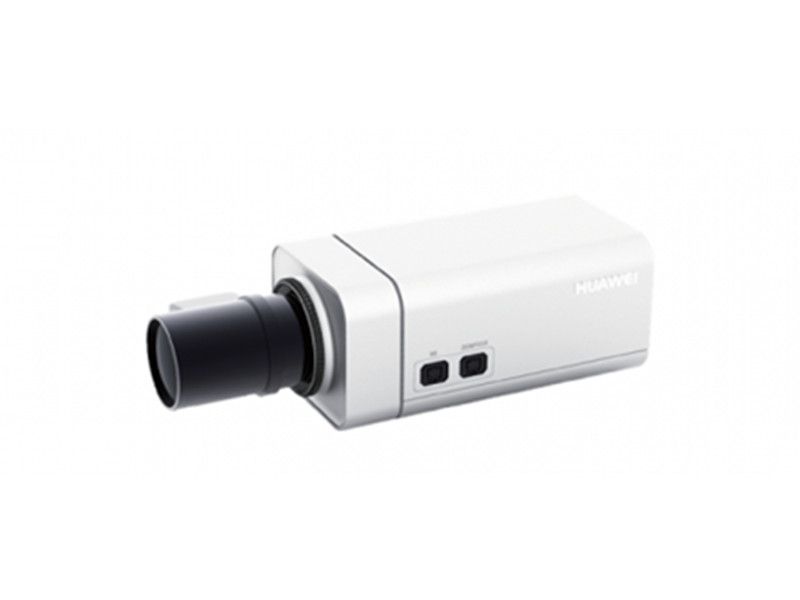

Quick Specs Figure 1 shows the appearance of IPC5602.

Table 1 shows the Quick Specs.

Image sensor 1/2.8″ Progressive Scan CMOS
Effective pixels 1920(H) × 1080(V)
Minimum Illumination Multicolor: 0.5 Lux /(F1.2,AGC ON)B/W: 0.1 Lux /(F1.2,AGC ON)
Day/Night mode Automatic ICR
Electronic shutter speed 1/5s  ～ 1/50,000s
Gain control Supported
White balance Supported
WDR 70 dB
Backlight compensation Supported
Focal length Lens configured (lens mount: C/CS)
Aperture DC drive
Video encoding format H.264 / MJPEG
Video resolution and frame rate 50Hz:25fps (1920×1080),25fps (640×360)60Hz:30fps (1920×1080),30fps (640×360)
Video bit rate Main-Stream:500Kbps~12MbpsSub-Stream:100Kbps~6Mbps
Multiple-Stream First and second streams: H.264;Third stream: MJPEG
Audio encoding format G.711
Audio bit rate 8kbps
Communication interface One RJ45 10/100 Base-T self-adaptive Ethernet interface and one RS-485 interface
Alarm interface 1-channel alarm input/1-channel alarm Output
Audio interface 1-channel audio input/1-channel audio Output
BNC interface BNC connector
Motion detection Eight motion detection areas
Privacy masks Five privacy mask areas with adjustable sizes
Network protocol IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP, DNS,SFTP,DDNS,PPPoE,SMTP,ONVIF2.1
Maximum number of concurrent users Ten users access or two channels of media streams
Local storage SDHC card（32G）
User rights Two levels of users: administrator and common user. The administrator assigns common users different rights.
Other functions One-key reset, triple code streams, and heartbeat mechanism
SDK development linux/windows C++ SDK
Power supply DC12V ±10% 1A / PoE 802.3af
Power consumption ≤5W
Operating temperature & humidity -10℃~+50℃ , < 90%(without condensation)
Net weight 0.47kg
Dimensions (mm) 74(W)×63(H)×145(D)

Get more information
Do you have any question about the IPC5602?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
