IPC6111-I
Model: Huawei IPC6111-I IPC6000 Series 1.3-Megapixel Intelligent High-Definition IP Camera
Details: Huawei IPC6111-I IPC6000 Series 1.3-Megapixel Intelligent High-Definition IP Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC6111-I Overview

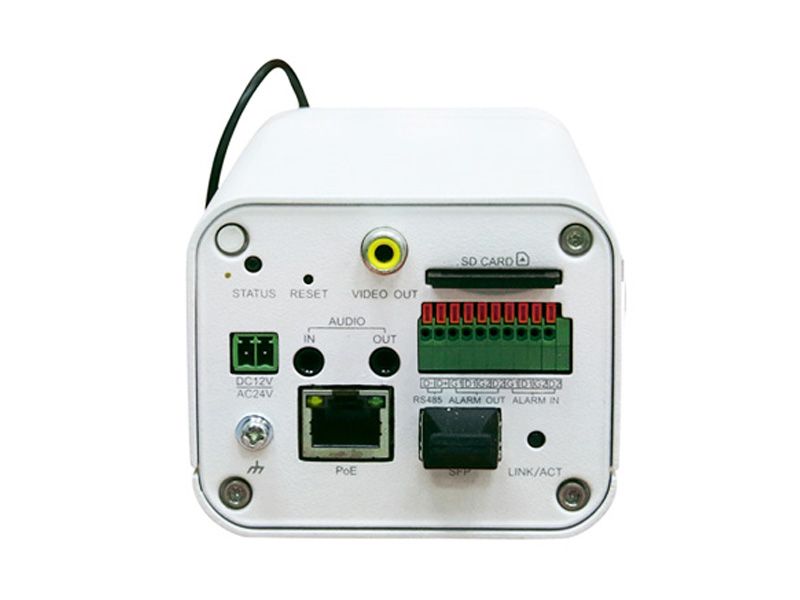

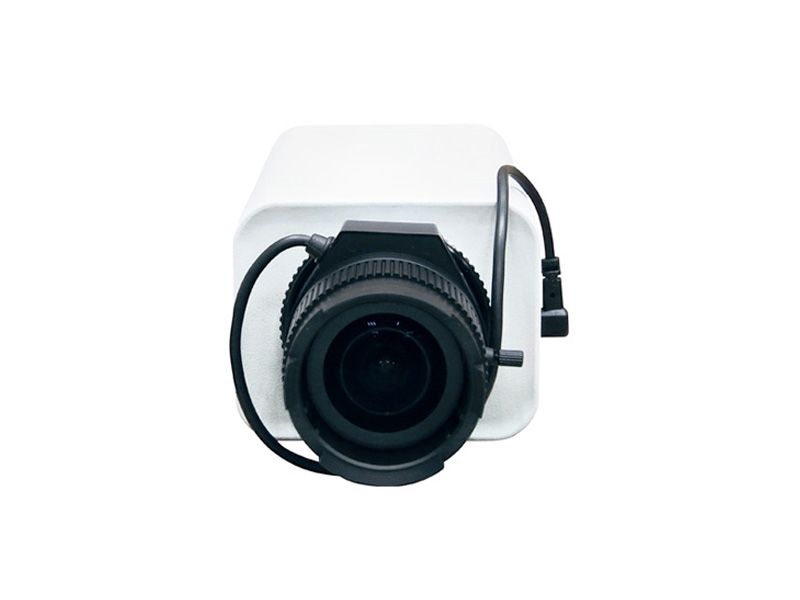

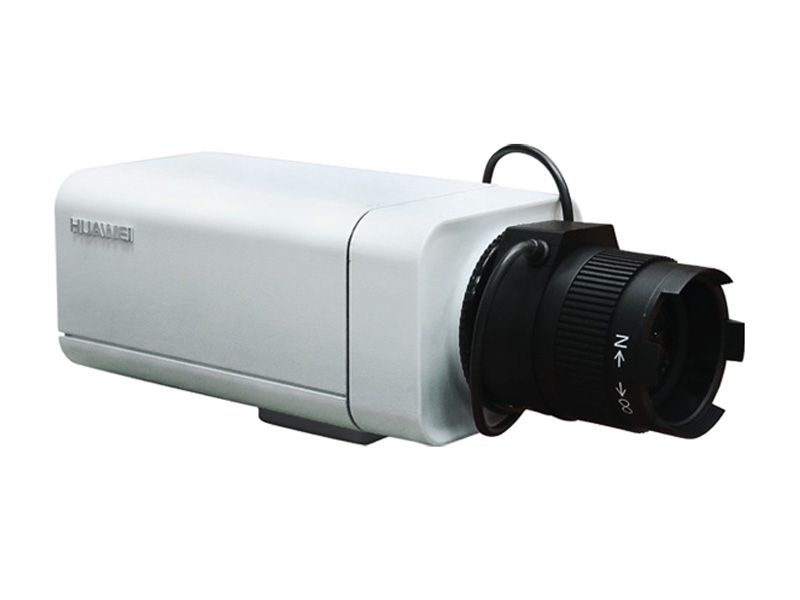

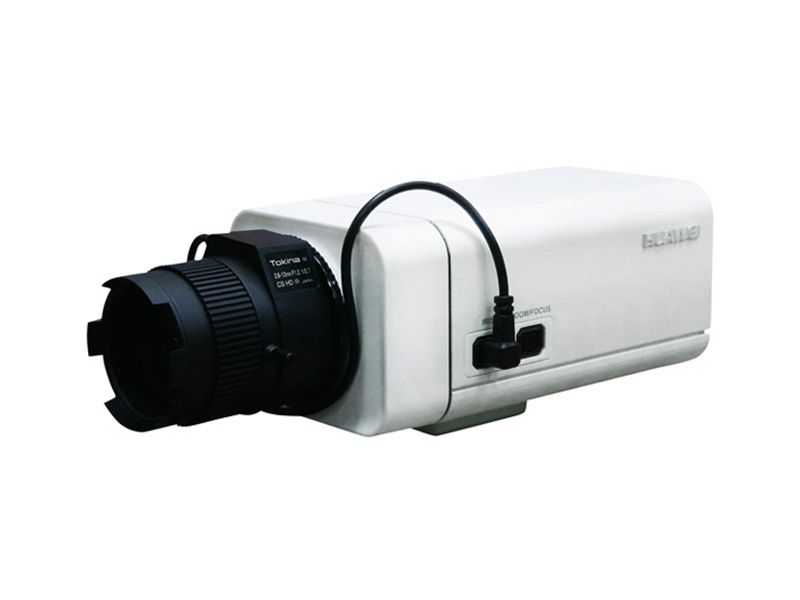

Quick Specs Figure 1 shows the appearance of IPC6111-I.
Table 1 shows the Quick Specs.
| Image sensor | 1/3” 1.3-megapixel Progressive Scan CMOS |
| Effective pixels | 1280(H)×720(V) |
| Minimum Illumination | Multicolor: 0.02Lux (50IRE, F1.4, AGC ON)B/W: 0.01Lux (50IRE, F1.4, AGC ON) |
| Day/Night mode | IR cut filter with auto switch |
| Electronic shutter speed | 1/67,500s to 1/25s |
| Gain control | Auto |
| White balance | Auto/Manual |
| Lens interface | Accepts C or CS mount lens (CS-mount lens with a C-to-CS- mount adapter) |
| Lens control | DC drive auto iris |
| Video encoding format | H.264 High profile @ level 4，MJPEG |
| Video resolution and frame rate | 720p@60fps, D1@30fps, CIF@30fps, |
| Video bit rate | 720P:512Kbps to 8Mbps,D1: 300Kbps to 4Mbps,CIF: 100Kbps to 1Mbps |
| ROI | Supported |
| Multiple-Stream | Three streams |
| Intelligent analysis | Tripwire detection, Loitering detection, Intrusion detection, Abandoned object detection, Removed object detection |
| Bit rate stream smoothing | Supported |
| Self-adaptive bandwidth | Supported |
| IP address filtering | Supported |
| Audio encoding format | G.711a/G.711u/G.726 |
| Communication interface | one RJ45 10/100 Base-T Ethernet interface and one RS-485 interface |
| SFP | Supported |
| Alarm interface | 2-channel alarm input/2-channel alarm Output, PHOENIX interface |
| Audio interface | 1-channel audio input/1-channel audio Output, 3.5 mm audio interface |
| Analog video output | 1-channel RCA interface |
| Motion detection | Supported |
| Privacy masks | Supported |
| Image quality adjustment | H.264: stream control; MJPEG: image quality control |
| Image rotation and mirroring | Supported |
| PU access protocol | ONVIF 2.1, ONVIF profile S |
| Network protocol | IPv4, HTTPS, RTP, RTCP, SIP, TCP, UDP, ARP, ICMP, DHCP,SSL, NTP |
| Maximum access streams | 4 |
| Local storage | SD or SDHC card (maximum 32 GB, no built-in SD card) |
| Security mode | User name and password authentication |
| Media security | Stream encryption using the AES128/192/256 |
| QoS | Supported |
| Alarm linkage | Supported |
| SDK | Supported |
| Power supplyPower consumption | DC : 21.6 V to 26.4 V and 10.8 V to 13.2 V, AC: 21.6 V to 26.4 V, PoE (802.3at);Self-adaptive power supply automatically regulates power input for stability.≤9.6W |
| Operating temperature & humidityNet weight | -10ºC ~ 50ºC< 90%(Noncondensing)0.995kg |
| Product Appearances (mm) | 157.7×79.7×79.4 |
