-5%
IPC6112-D
Model: Huawei IPC6112-D IPC6000 Series 1.3-Megapixel High-Definition IP Camera
Details: Huawei IPC6112-D IPC6000 Series 1.3-Megapixel High-Definition IP Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC6112-D Overview

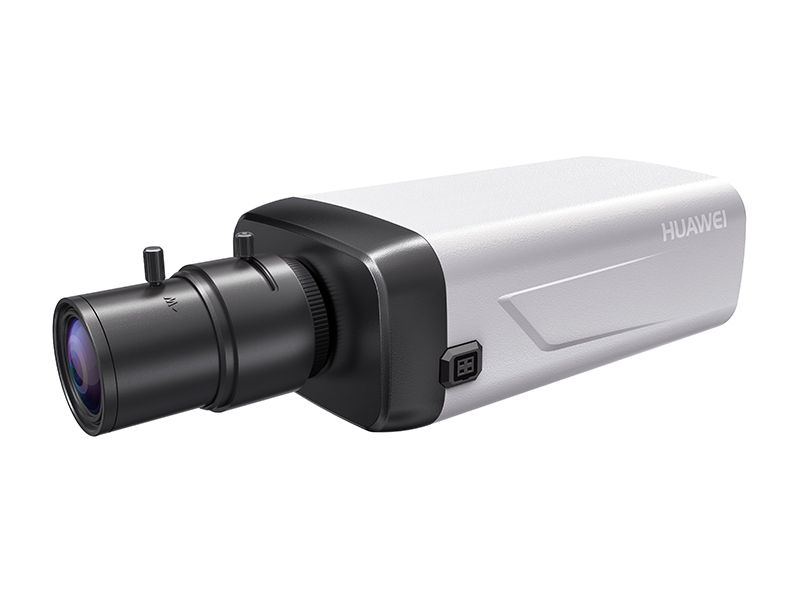

Quick Specs Figure 1 shows the appearance of IPC6112-D.
Table 1 shows the Quick Specs.
| Image sensor | 1/3″ 1.3 megapixel progressive scan CMOS |
| Effective pixels | 1280(H)×1024(V) |
| Minimum Illumination | Multicolor: 0.007lux (F1.2, AGC ON, 1/30s shutter and 50 IRE), 0.01lux (F1.4, AGC ON, 1/30s shutter and 50 IRE)B/W: 0.002 lux (F1.2, AGC ON, 1/30s shutter and 50 IRE), 0.003 lux (F1.4, AGC ON, 1/30s shutter and 50 IRE) |
| Day/Night mode | Automatic ICR, multicolor, or B/W |
| Electronic shutter speed | 1/16000 s ~ 1/25 (1/30) s |
| Gain control | Automatic |
| Backlight compensation | Supported |
| Wide dynamic range (WDR) | Supported |
| White balance | Auto/Manual/Indoor/Outdoor/Fixed Sodium Lamp |
| Noise Reduction | Self-adaptive to 2D or 3D DNR (digital noise reduction) |
| Lens interface | CS-mount lens with a C- or CS-mount adapter (without lens) |
| Lens control | Manual/DC drive auto aperture |
| Video encoding format | H.264 MP/BP, MJPEG |
| Video resolution and frame rate | 1280 × 1024 ， 1280 × 960 ， 1280 × 720 ， 720 × 576 ，720×480，352×288，352×240；H.264: Full Frame Rate(25fps,30fps), 20fps ~ 1fps;MJPEG: 5fps ~ 1fps |
| Video bit rate | 1024p/960p/720p: 512Kbps ~ 8Mbps，720p: 512Kbps ~ 8Mbps，D1: 300Kbps ~ 4Mbps，CIF: 100Kbps ~ 1Mbps |
| Region of Interest | Supported ROI (Region of Interest) |
| Multiple encoding | Encode one channel of primary streams and two channels of secondary streams at the same time |
| Stream package | Four basic packages and four customized packages |
| Bit rate type | CBR(Constants Bit Rate), VBR(Variable Bit Rate) |
| Dynamic bit rate | Supported |
| Image quality adjustment | H.264: stream control; MJPEG: JPEG quality control |
| IP address fiCommunication interface | Blacklist and whitelistOne RJ-45 10/100 Mbit/s self-adaptive Ethernet port and one RS-485 port (PELCO-P or PELCO-D protocol) |
| Alarm interface | 1-channel alarm input and 1-channel alarm output (Phoenix connector) |
| Analog video output | 1-channel RCA interface |
| Audio encoding format | G.711a/G.711u/G.726 |
| Audio interface | 1-channel audio input and 1-channel audio output , 3.5 mm audio port |
| Voice communication | Voice intercom (a sound pickup is required), voice broadcast, channel- associated voice |
| Motion detection | Supported |
| Privacy masks | Supported |
| Image mirroring | Mirror/Flip/Mirror&Flip |
| PU access protocol | ONVIF 2.2, HUAWEI SDK |
| Network protocol | TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP(V1/V2/V3), 802.1x, QoS |
| Stream mode | Unicast and multicast |
| Maximum access users | 10 (allows users to obtain a maximum of two channels of 1024p video streams at the same time) |
| Local storageSecurity mode | Micro SD cards (confi ed additionally); A maximum capacity of 32 GB; Speed class: ≥ 4; Supports video bufferingUser name and password authentication, 802.1x (MD5 Challenge), and PKI digital certifi |
| Media security | Stream encryption using the AES128/192/256 encryption algorithm |
| Data transmission optimization | Bit rate stream smoothing, Self-adaptive bandwidth, MTU confi ation, QoS confi ation |
| Alarm linkage | Supported; When detecting alarms such as motion detection, lens mask, and Boolean value input, the system automatically links Boolean value output. |
| Browser | IE8/IE9/IE10, Windows XP, Windows 7, Windows 8 |
| Quick confi ation | Typical scenarios |
| Power supply | DC12V ± 25%, DC24V ± 25% AC24V ± 30% |
| Power consumption | Typical consumption: 2.5 W; Maximum consumption: 4 W (IR-CUT switchover) |
| Operating environment | Operating temperature: -10ºC ~ 60ºC; Operating humidity: Relative humidity: 5% to 90% (without condensation) |
| Net weight | 450g |
| Dimensions (mm) | 143.5×80.7×62.5, without lens |
