IPC6121-I
Model: Huawei IPC6121-I 1080P D/N Intelligent Network Box
Details: Huawei IPC6121-I 1080P D/N Intelligent Network Box Camera(60fps,SFP)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC6121-I Overview

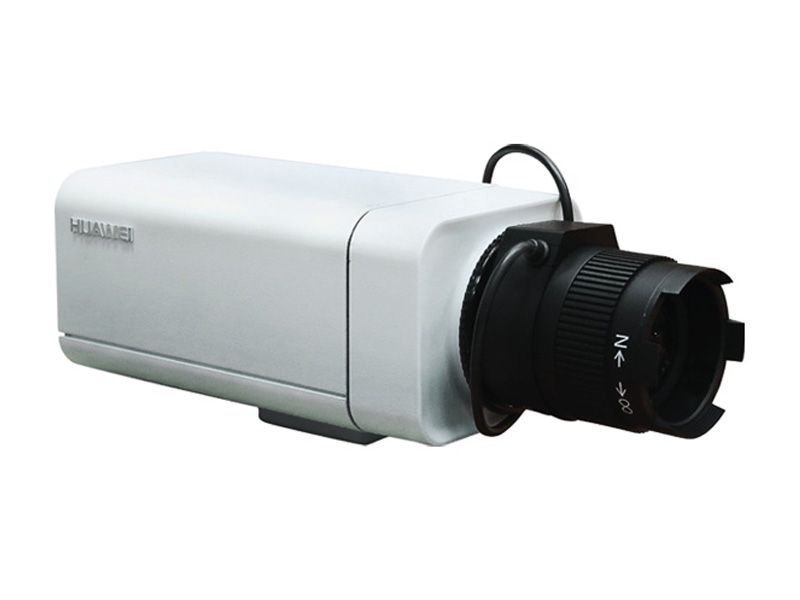

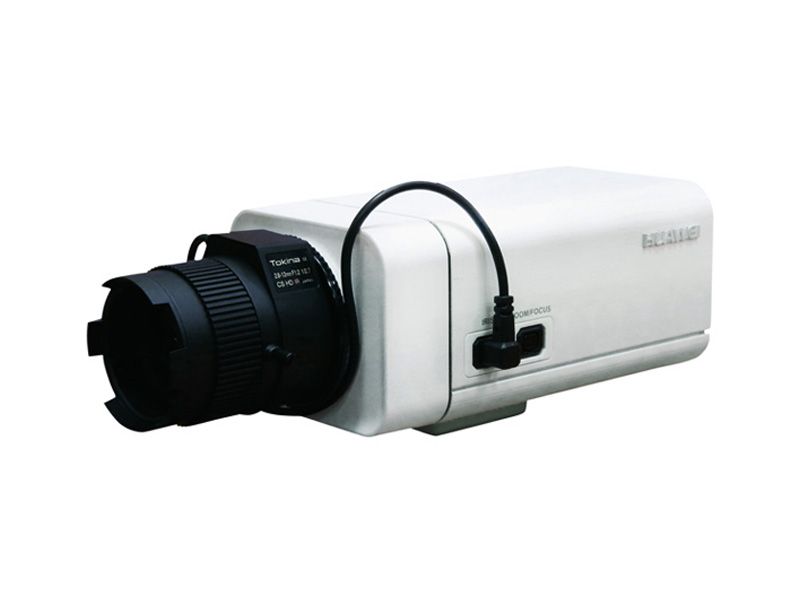

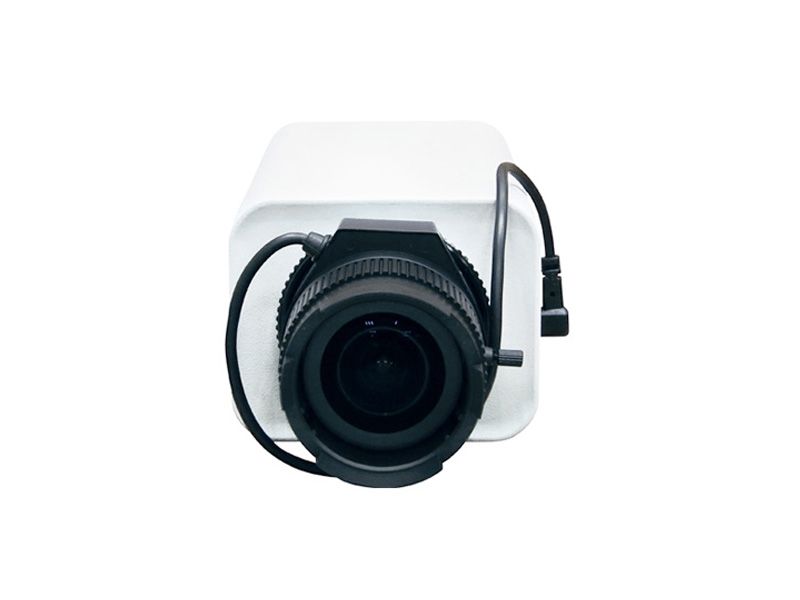

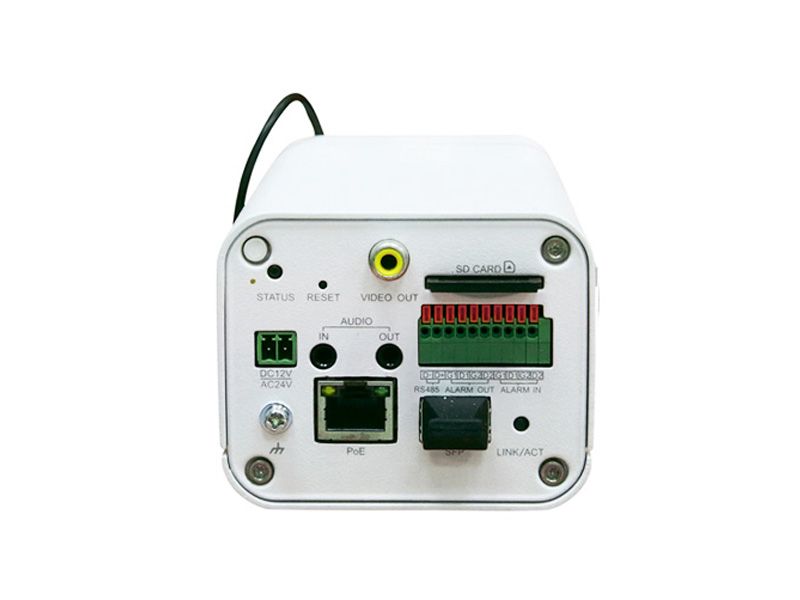

Quick Specs Figure 1 shows the appearance of IPC6121-I.
Table 1 shows the Quick Specs.
| Image sensor | 1/3” 2.0-megapixel Progressive Scan CMOS |
| Effective pixels | 1920(H)×1080(V) |
| Minimum IlluminationDay/Night mode | Multicolor: 0.04Lux (50IRE, F1.4, AGC ON)B/W: 0.01Lux (50IRE, F1.4, AGC ON)IR cut filter with auto switch |
| Electronic shutter speed | 1/67, 500s to 1/25s |
| Gain controlWhite balance | AutoAuto/Manual |
| Lens interfaceLens control | Accepts C or CS mount lens (CS-mount lens with a C-to-CS- mount adapter)DC drive auto iris |
| Video encoding formatVideo resolution and frame rate | H.264 HP@L4, MJPEG1080P@60fps, 720P@60fps，D1@60fps，CIF@60fps |
| Video bit rate | 1080p: 1Mbps ~ 8Mbps，720p: 512Kbps ~ 8Mbps，D1: 300Kbps ~ 4Mbps，CIF: 100Kbps ~ 1Mbps |
| ROIMultiple-Stream | SupportedThree streams |
| Intelligent analysis | Tripwire detection, Loitering detection, Intrusion detection, Abandoned object detection, Removed object detection |
| Bit rate stream smoothingSelf-adaptive bandwidth | SupportedSupported |
| IP address filtering | Supported |
| Audio encoding formatCommunication interface | G.711a/G.711u/G.726one RJ45 10/100 Base-T Ethernet interface and one RS-485 interface |
| SFP | Supported |
| Alarm interfaceAudio interface | 2-channel alarm input/2-channel alarm Output, PHOENIX interface1-channel audio input/1-channel audio Output, 3.5 mm audio interface |
| Analog video outputMotion detection | 1-channel RCA interfaceSupported |
| Privacy masksImage quality adjustmentImage rotation and mirroringPU access protocol | SupportedH.264: stream control; MJPEG: image quality controlSupportedONVIF 2.1, ONVIF profile S |
| Network protocolMaximum access streams | IPv4, HTTPS, RTP, RTCP, SIP, TCP, UDP, ARP, ICMP, DHCP,SSL, NTP4 |
| Local storage | SD or SDHC card (maximum 32 GB, no built-in SD card) |
| Security modeMedia security | User name and password authenticationStream encryption using the AES128/192/256 |
| QoS | Supported |
| Alarm linkageSDK | SupportedSupported |
| Power supplyPower consumption | DC : 21.6 V to 26.4 V and 10.8 V to 13.2 V, AC: 21.6 V to 26.4 V, PoE (802.3at);Self-adaptive power supply automatically regulates power input for stability≤9.6W |
| Operating temperature & humidity | -10ºC ~50ºC,< 90%(Noncondensing) |
| Net weightProduct Appearances (mm) | 0.995kg157.7×79.7×79.4 |
